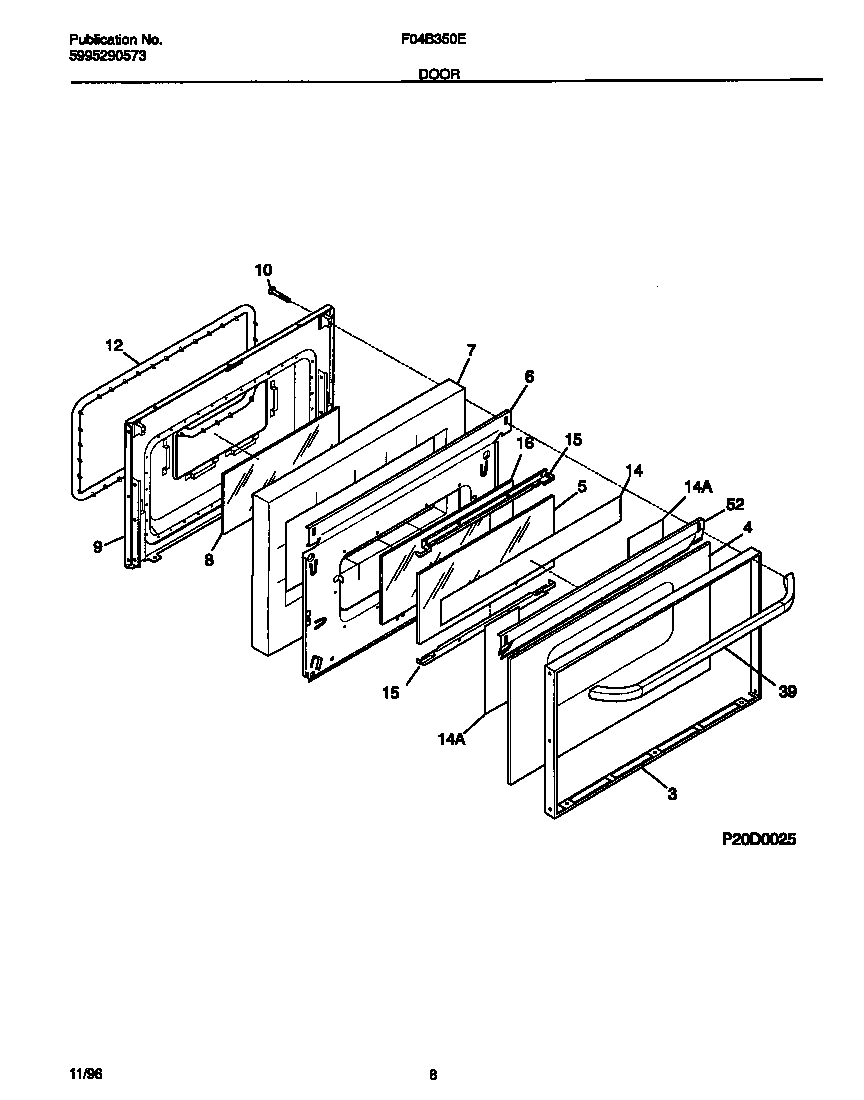

F04B350EDB 05 – DOOR

F04B350EDB 05 – DOOR

Written by

in

F04B350EDB 05 – DOOR

Products

PositionProduct
*18250SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*18249WCI 316065301
*18254131243700 Frigidaire Screw
*18252WCI 5303280311
*182515303271648 Frigidaire Oven Screw
*182535303285179 Frigidaire Oven Door Screw
3WCI 316067802
4WCI 316089000
5GLASS-OVEN DOOR, AIRWASH
6WCI 316088401
7WCI 316076400
8WCI 316088700
9WCI 316066610
10WCI 5303280308
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15WCI 316081401
16WCI 316085700
395304529996 Frigidaire Handle Kit
52WCI 316081303
