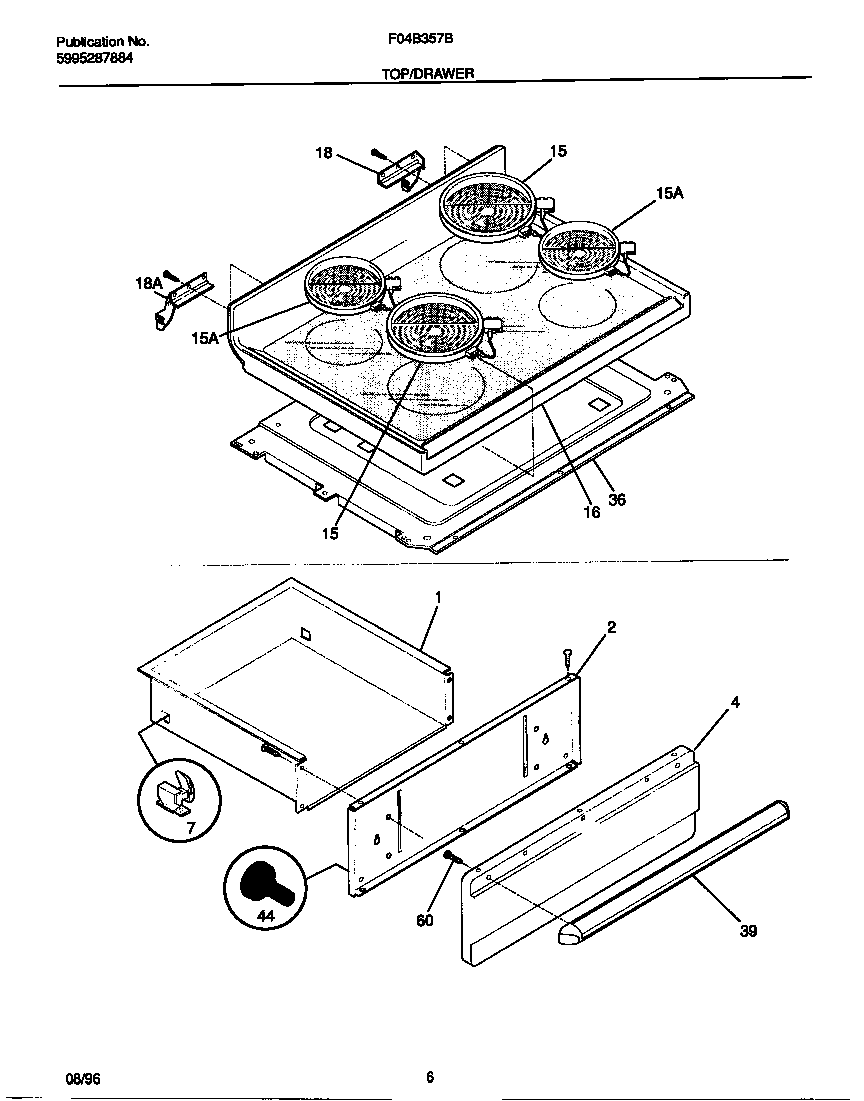

F04B357BDF 04 – TOP/DRAWER

F04B357BDF 04 – TOP/DRAWER

Written by

in

F04B357BDF 04 – TOP/DRAWER

Products

PositionProduct
*39730WCI 5309951550
*39728131243700 Frigidaire Screw
*39727WCI 5303280311
*39729WCI 5303288574
*39726Screw,cup pt ,8-18 x 0.375 ,chrome
*39731WCI 316001732
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316035506
18HINGE-MAIN TOP (LH)
18AHINGE-MAIN TOP (RH)
18BRIVET-POP, WARING-PLATE
36BWCI 316023301
36CWCI 316041001
36AWCI 316033610
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60316089500 Frigidaire Oven Screw
