F04B357BWB 04 – TOP/DRAWER

F04B357BWB 04 – TOP/DRAWER

Written by

in

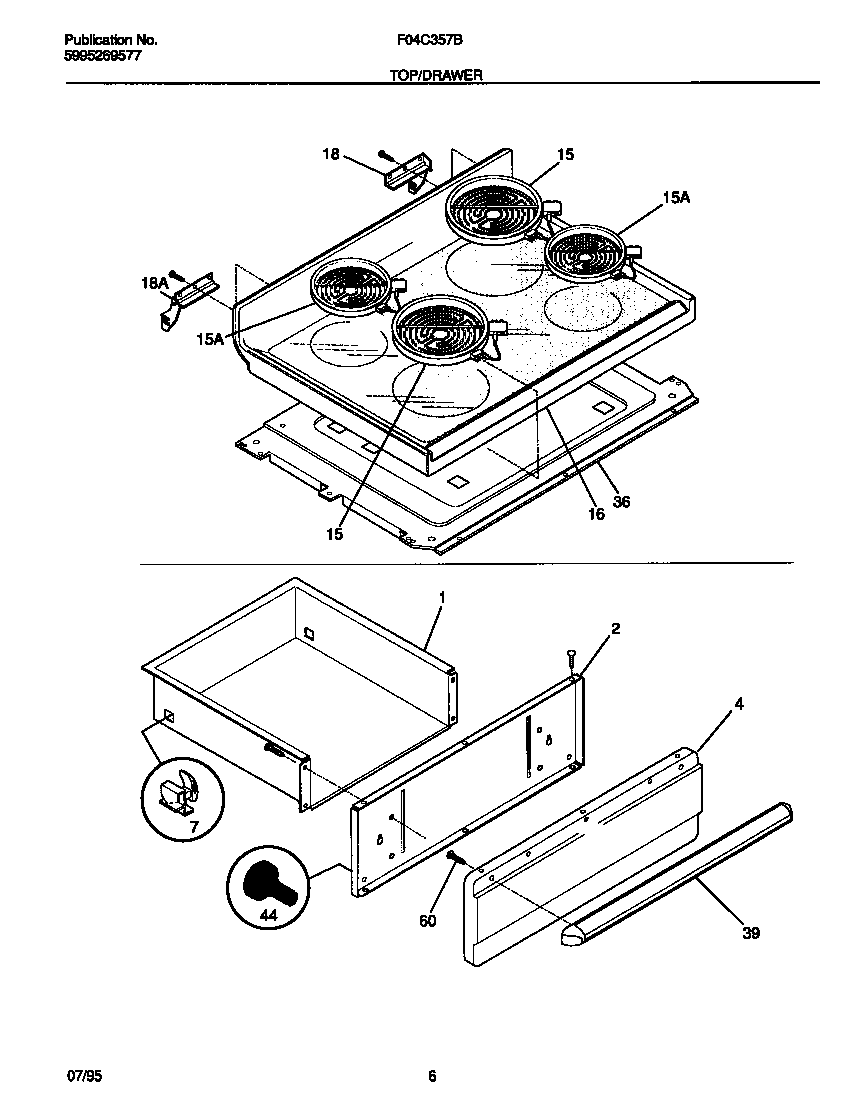

F04B357BWB 04 – TOP/DRAWER

Products

PositionProduct
*36529RIVET-POP, WARING-PLATE
*36531131243700 Frigidaire Screw
*36532WCI 5309951550
*36530WCI 5303281584
*36533WCI 316001732
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15BWCI 5303305628
15CLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15318198834 Frigidaire Oven Element
15A318178110 Frigidaire Oven Range 6" Surface Element
16WCI 316035505
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36AWCI 316023301
36BWCI 316041001
36WCI 316033610
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
