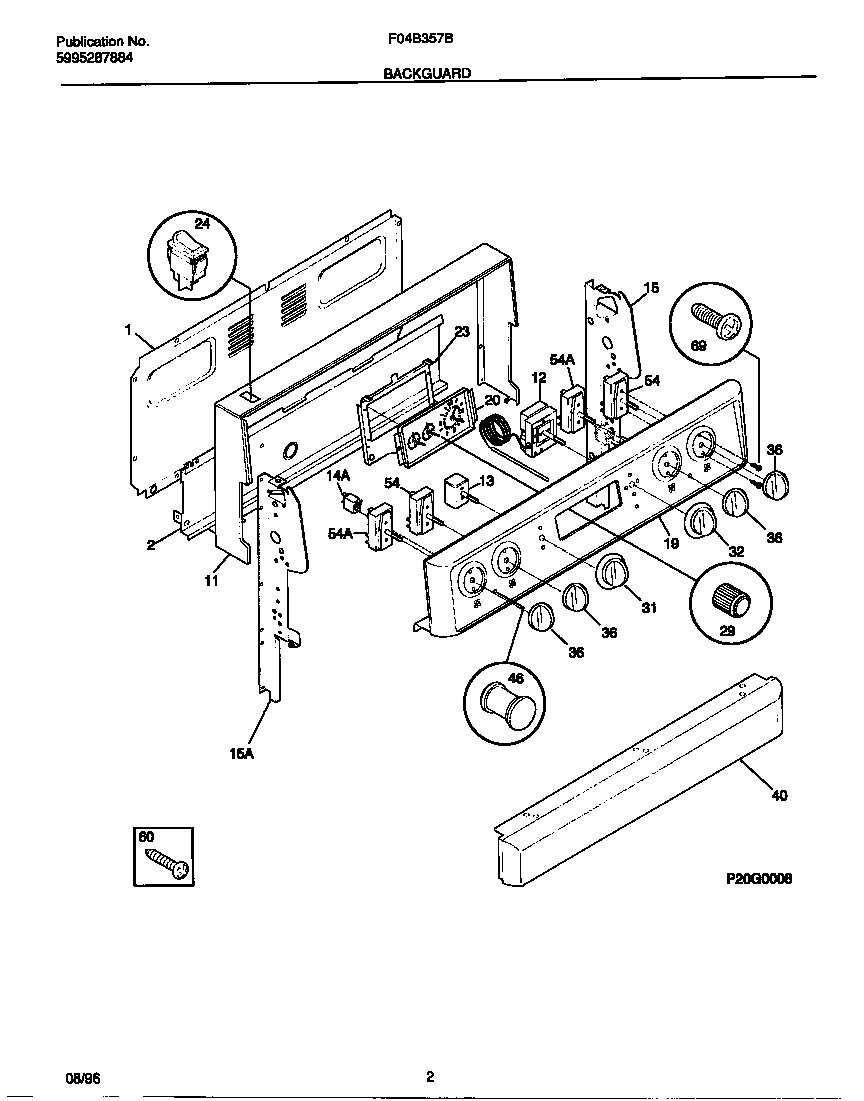

F04B357BWF 02 – BACKGUARD

F04B357BWF 02 – BACKGUARD

Written by

in

F04B357BWF 02 – BACKGUARD

Products

PositionProduct
*39721WCI 5303288574
*39720Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316081601
2WCI 316015905
11WCI 316083705
12THERMOSTAT-OVEN
13WCI 316023200
14B316022503 Frigidaire Light Lamp P-1
14ALIGHT/LAMP, IND, HOT SURFACE
15WCI 316023110
15WCI 316023111
19WCI 316024486
20WCI 316017404
23WCI 316033203
245304527841 Frigidaire Oven Rocker Switch (Black)
29WCI 316029008
31WCI 316054908
32WCI 316054902
36WCI 316025100
40WCI 316025800
46ALENS-LIGHT/LAMP, INDICATOR
46B318228310 Frigidaire Oven Lens
54316436001 Frigidaire Oven Range Infinite Burner Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
60316021105 Frigidaire Oven Screw
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
