F04B357BWG 04 – TOP/DRAWER

F04B357BWG 04 – TOP/DRAWER

Written by

in

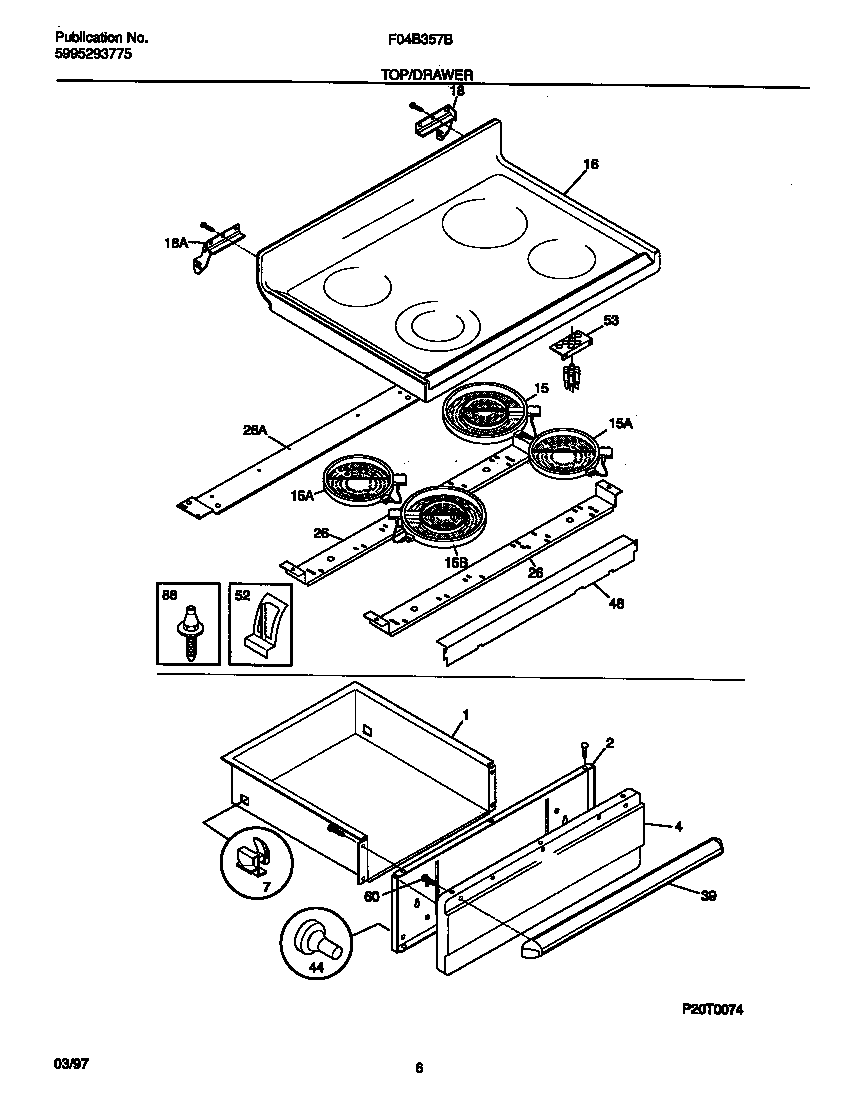

F04B357BWG 04 – TOP/DRAWER

Products

PositionProduct
*29327RIVET-POP, WARING-PLATE
*29329WCI 5303280311
*29331WCI 5309951550
*29326Clip,wiring harness ,green ,main top
*29330WCI 5303288574
*29328Screw,cup pt ,8-18 x 0.375 ,chrome
*29332WCI 316001738
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316098125
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099201
26WCI 316099101
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
52Clip,element mtg
53WCI 316099301
60316089500 Frigidaire Oven Screw
88316099500 Frigidaire Oven Pin
