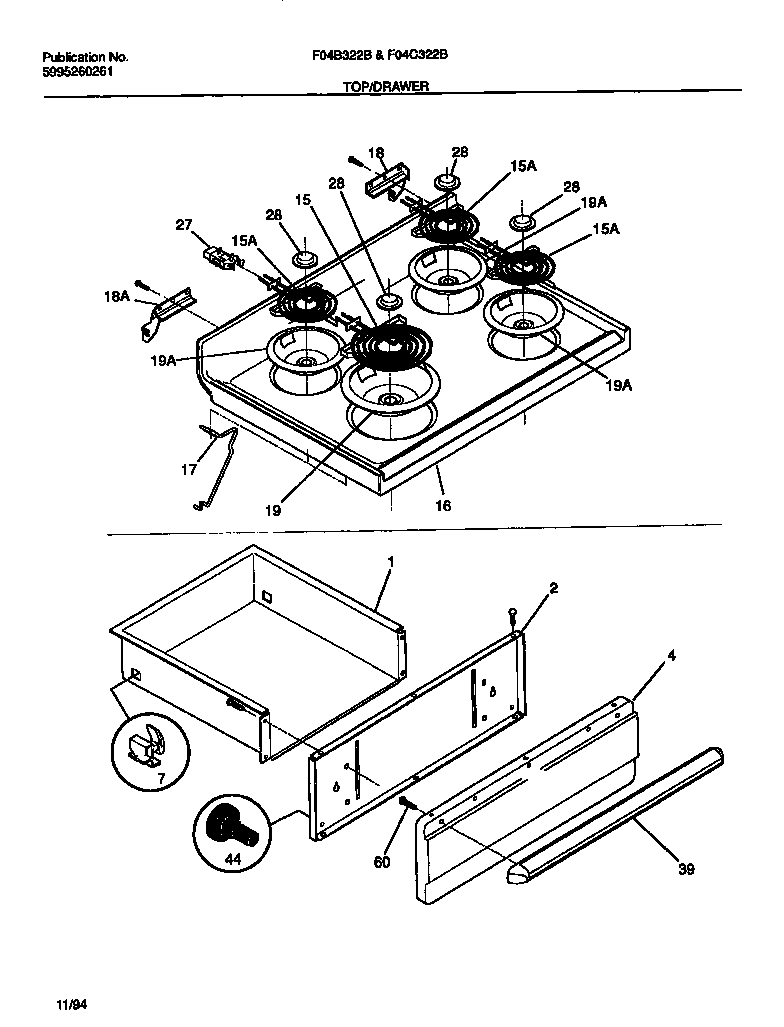

F04C322BSA 04 – TOP/DRAWER

Products

Position	Product
*01364	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	5308011964 Frigidaire Surface Element P1
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	316202388 Frigidaire Oven Maintop
17	316057601 Frigidaire Oven Rod
18A	HINGE-MAIN TOP (LH)
18B	131243700 Frigidaire Screw
18	HINGE-MAIN TOP (RH)
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A	L304430992 Frigidaire 6" Drip Bowl Chrome FM
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
39	WCI 316026101
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303288574
