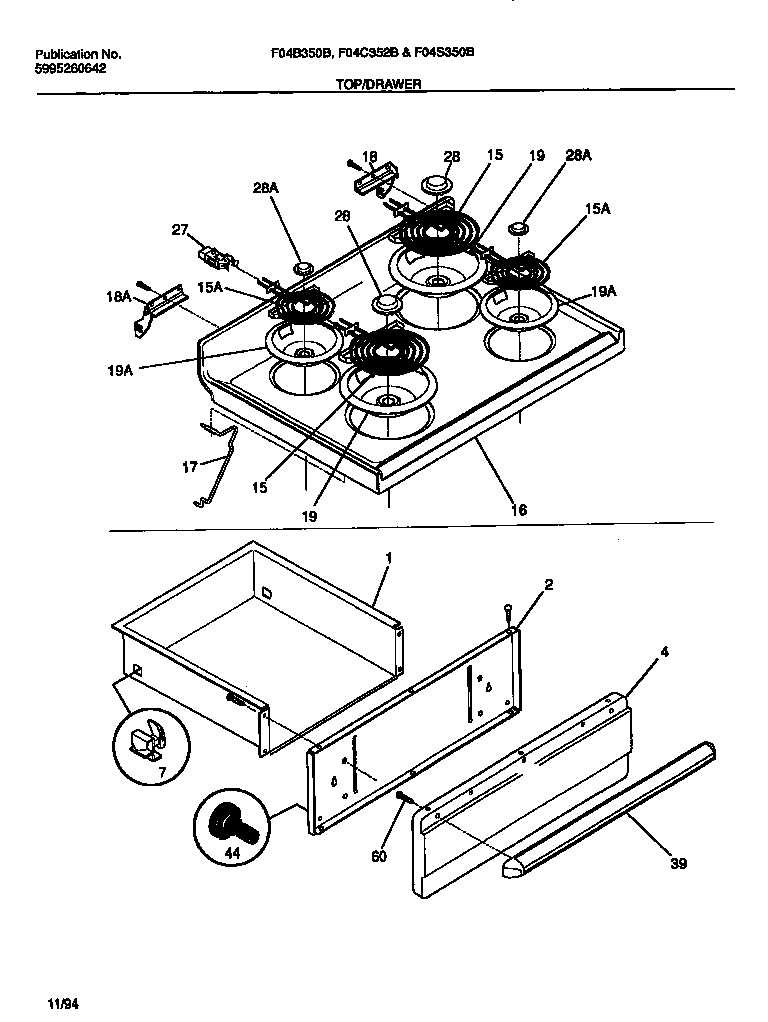

F04C352BSA 05 – TOP/DRAWER

Products

Position	Product
*12774	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
16	316202388 Frigidaire Oven Maintop
17	316057601 Frigidaire Oven Rod
18B	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
18A	131243700 Frigidaire Screw
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A	L304430992 Frigidaire 6" Drip Bowl Chrome FM
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
28A	WCI 5303296595
39	WCI 316026101
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303288574
