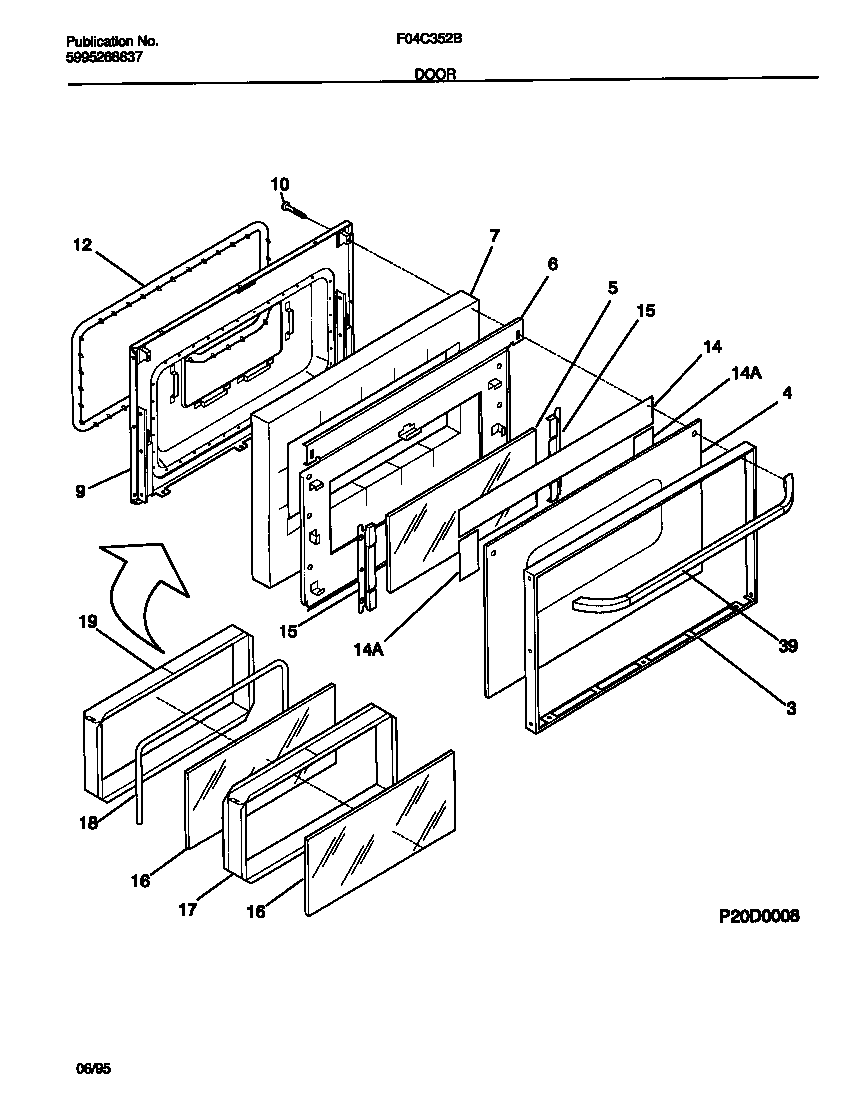

F04C352BSB 05 – DOOR

Products

Position	Product
*97850	RIVET-POP, WARING-PLATE
*97851	WCI 316065300
*97852	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*97853	5303300265 Frigidaire Oven Screw
*97856	5303285179 Frigidaire Oven Door Screw
*97855	WCI 5303280311
*97854	5303271648 Frigidaire Oven Screw
*97857	131243700 Frigidaire Screw
3	WCI 316067804
4	WCI 316019719
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION, WHITE
7	WCI 316076400
9	WCI 316066603
10	SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
12	5303131601 Frigidaire Oven Seal
14	ALUM FOIL-B/G GLASS
14	5303208655 Frigidaire Reflector Assembly
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	5304530039 Frigidaire Handle Set
