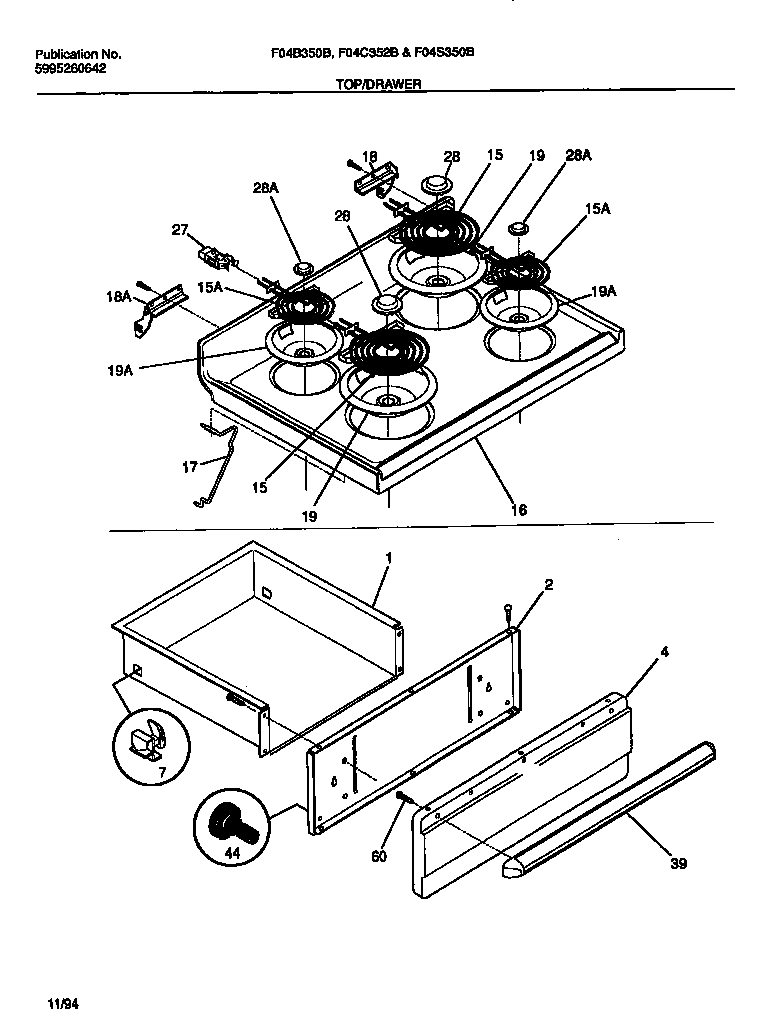

F04C352BTA 05 – TOP/DRAWER

F04C352BTA 05 – TOP/DRAWER

Written by

in

F04C352BTA 05 – TOP/DRAWER

Products

PositionProduct
*12774WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 316020908
17316057601 Frigidaire Oven Rod
18A131243700 Frigidaire Screw
18HINGE-MAIN TOP (RH)
18BHINGE-MAIN TOP (LH)
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28AWCI 5303296595
39WCI 316026102
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
