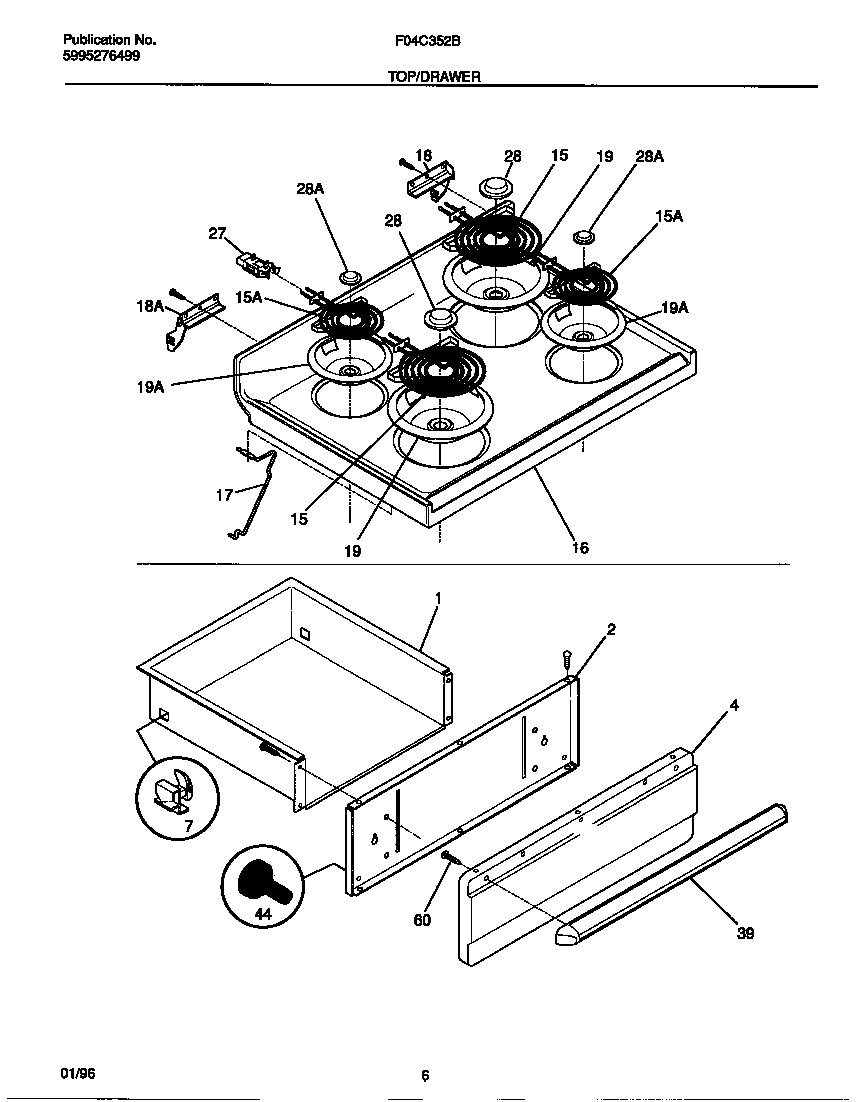

F04C352BTC 04 – TOP/DRAWER

Products

Position	Product
*70487	RIVET-POP, WARING-PLATE
*70488	WCI 316001725
*70489	WCI 5303281584
*70490	131243700 Frigidaire Screw
*70491	WCI 5303288574
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19	L304430992 Frigidaire 6" Drip Bowl Chrome FM
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
28	WCI 5303296595
39	WCI 316026102
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303280308
