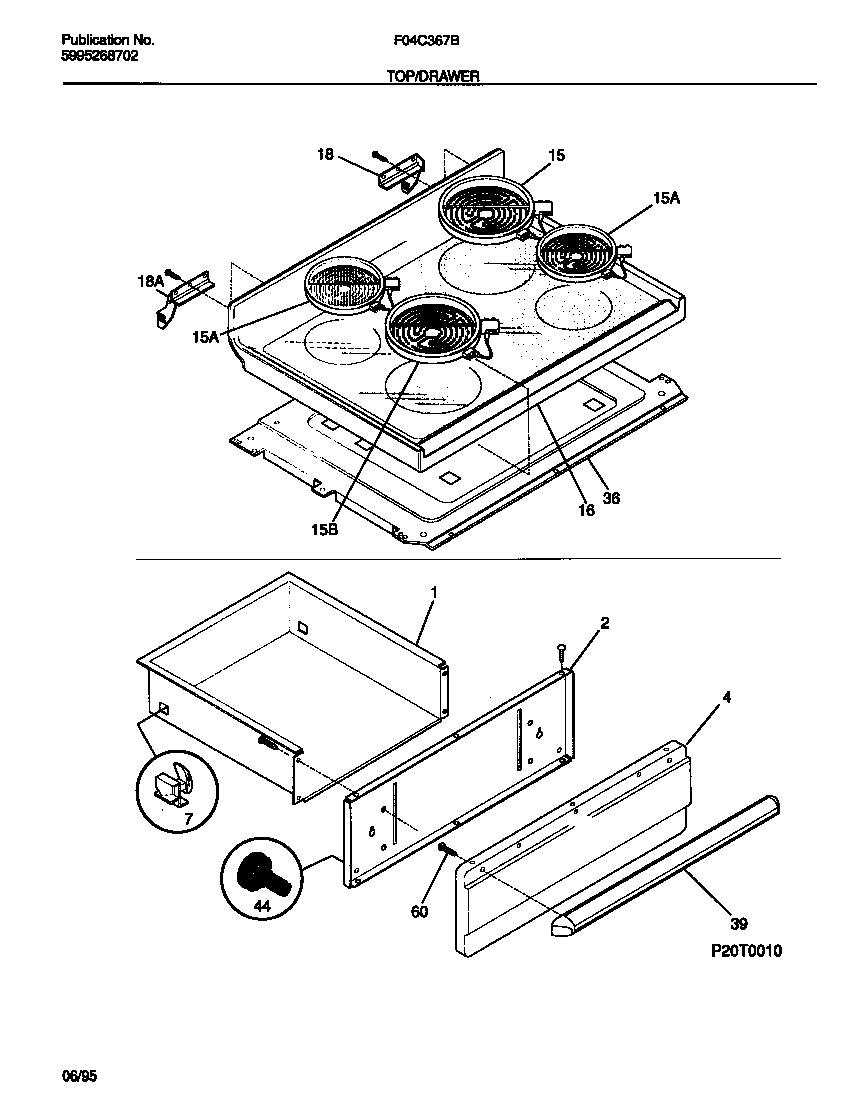

F04C367BSB 04 – TOP/DRAWER

Products

Position	Product
*19049	LIGHT/LAMP, IND, HOT SURFACE
*19050	LENS-LIGHT/LAMP, INDICATOR
*19052	WCI 5303281584
*19054	WCI 5309951550
*19051	WCI 5303281379
*19048	WCI 316001729
*19053	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	WCI 316049700
15B	LIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15A	318178110 Frigidaire Oven Range 6" Surface Element
15B	WCI 5303305628
15A	318198834 Frigidaire Oven Element
16	WCI 316035507
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
36C	WCI 316041001
36B	WCI 316023301
36A	WCI 316033610
39	WCI 316026103
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
