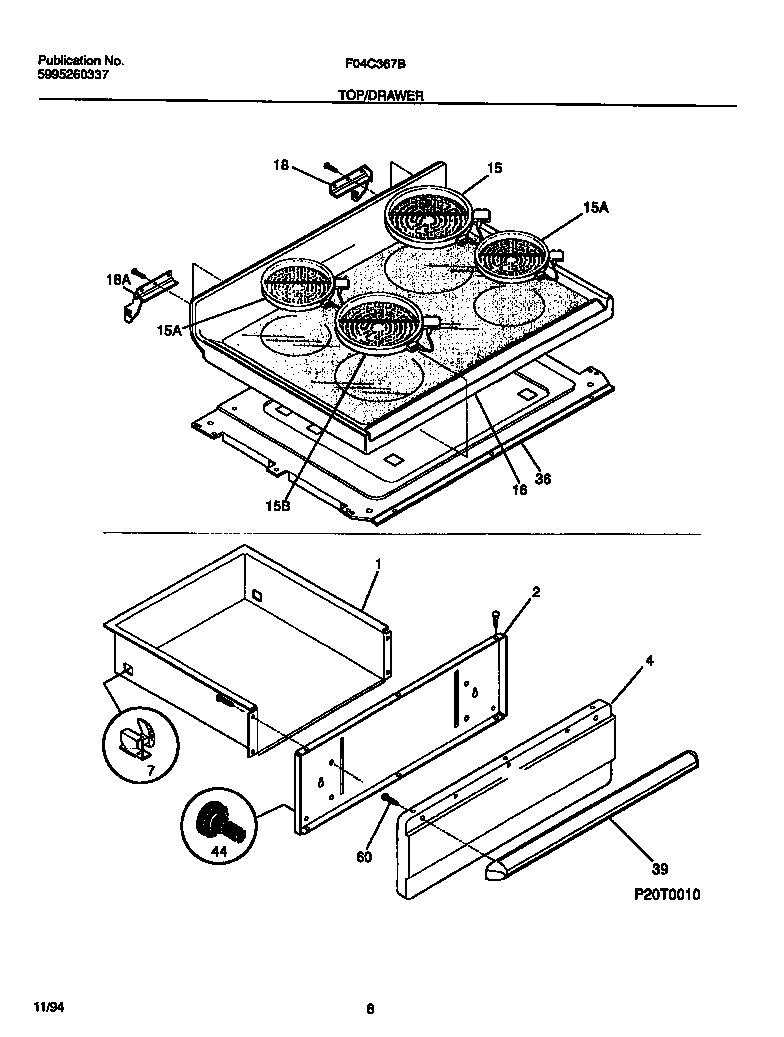

F04C367BTA 04 – TOP/DRAWER

Products

Position	Product
*33369	WCI 5303281584
*33370	WCI 5309951550
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15C	WCI 5303305628
15D	LIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15B	WCI 316049700
15	318198834 Frigidaire Oven Element
15E	LIMITER SWITCH, LARGE/8“, DUAL COIL (NON-ILLUSTRATED)
15A	318178110 Frigidaire Oven Range 6" Surface Element
16	WCI 316035508
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
18B	131243700 Frigidaire Screw
36B	WCI 316041001
36	PANEL, ELEMENT MOUNTING, GLASS TOP
36A	WCI 316023301
39	WCI 316026102
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303288574
