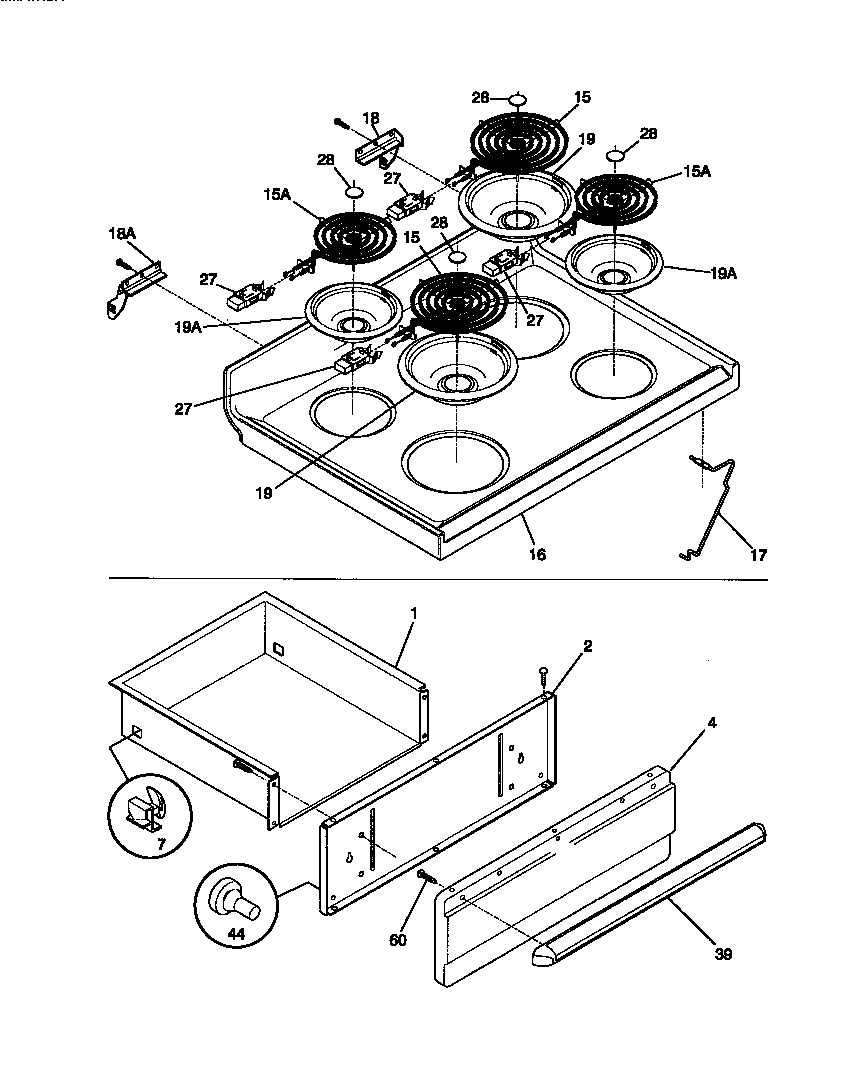

F04S350BDB 04 – TOP/DRAWER

F04S350BDB 04 – TOP/DRAWER

Written by

in

F04S350BDB 04 – TOP/DRAWER

Products

PositionProduct
*04569WCI 5303281584
*04568316058601 Frigidaire Oven Clip
*04570131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4AWCI 316056207
4BSCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19A316222201 Frigidaire Oven Drip Bowl Assembly
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
27B5303935058 Frigidaire Oven Burner Receptacle Kit
28A5303017715 Frigidaire Medallion
28BMEDALLION, STAINLESS STEEL, SURF ELEM
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
