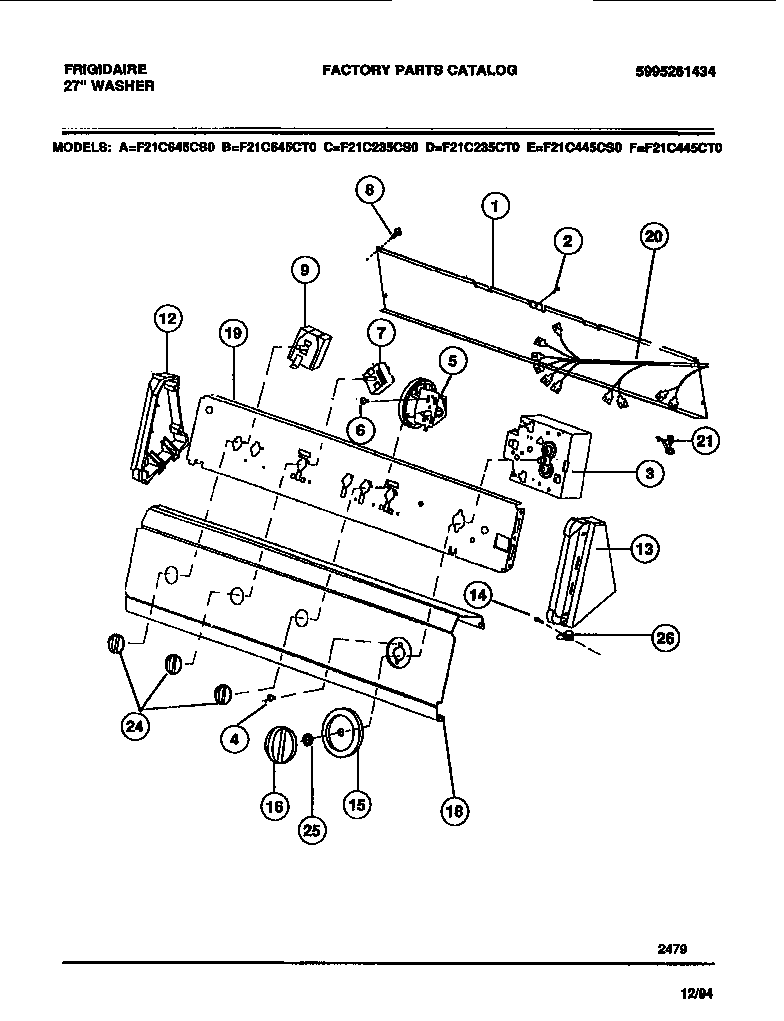

F21C235CS0 05 – CONSOLE

Products

Position	Product
1	BACKSHEET
2	131243700 Frigidaire Screw
3A	WCI 131237800
4	SCREW (2)
5	134680100 Frigidaire Pressure Switch
6	131168200 Frigidaire Dryer Screw
8	131205100 Frigidaire Screw
9A	WCI 131047000
12	END CAP-L.H.-WHITE
13	END CAP-R.H.-WHITE
14	WCI 5303289526
15	WCI 131140701
16	WCI 131140601
18A	WCI 131401200
19	WCI 131297306
20	WCI 131165600
21	131243800 Frigidaire Screw
24	131858004 Frigidaire Control Knob, White
25	Spacer,washer ,timer shaft
26	CLIP-CONSOLE MTG
30	COVER-CAP-LH-WHITE
31	COVER-CAP-RH-WHITE
