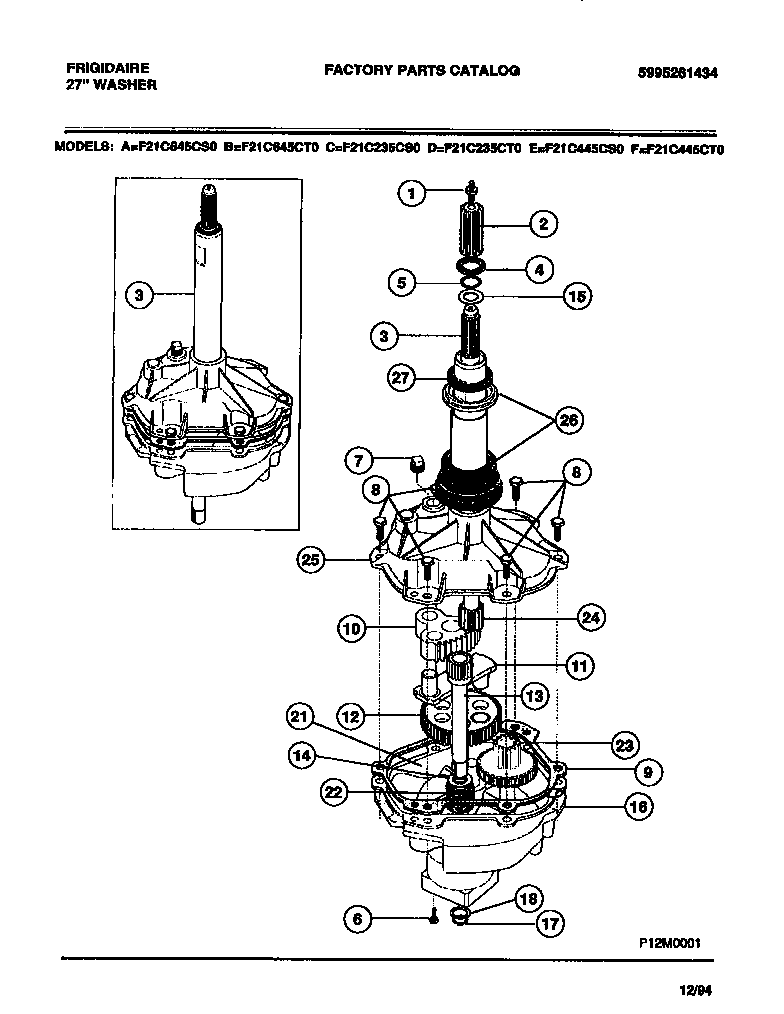

F21C235CT0 04 – WASHER MECHANISM

F21C235CT0 04 – WASHER MECHANISM

Written by

in

F21C235CT0 04 – WASHER MECHANISM

Products

PositionProduct
1WCI 131206800
2134418700 Frigidaire Agitator Drive Hub
3TRANSMISSION COMPL.
45303161307 Frigidaire Dryer Seal Assembly
6134197900 Frigidaire Screw
7WCI 5303161224
8SCREW (6)
9GASKET
10WCI 5308011268
11WCI 5303161169
12WCI 5308015496
13WCI 5308014905
14WCI 5303161226
15WCI 5303161227
16WCI 131362000
17WCI 5303161223
18WCI 5308002475
21OIL-TRANSMISSION (1 QT)
22WCI 5303161174
23WCI 5303161175
24134736400 Frigidaire Gear Case
25WCI 5303294437
26SEAL-TUB
27THRUST WASHER
