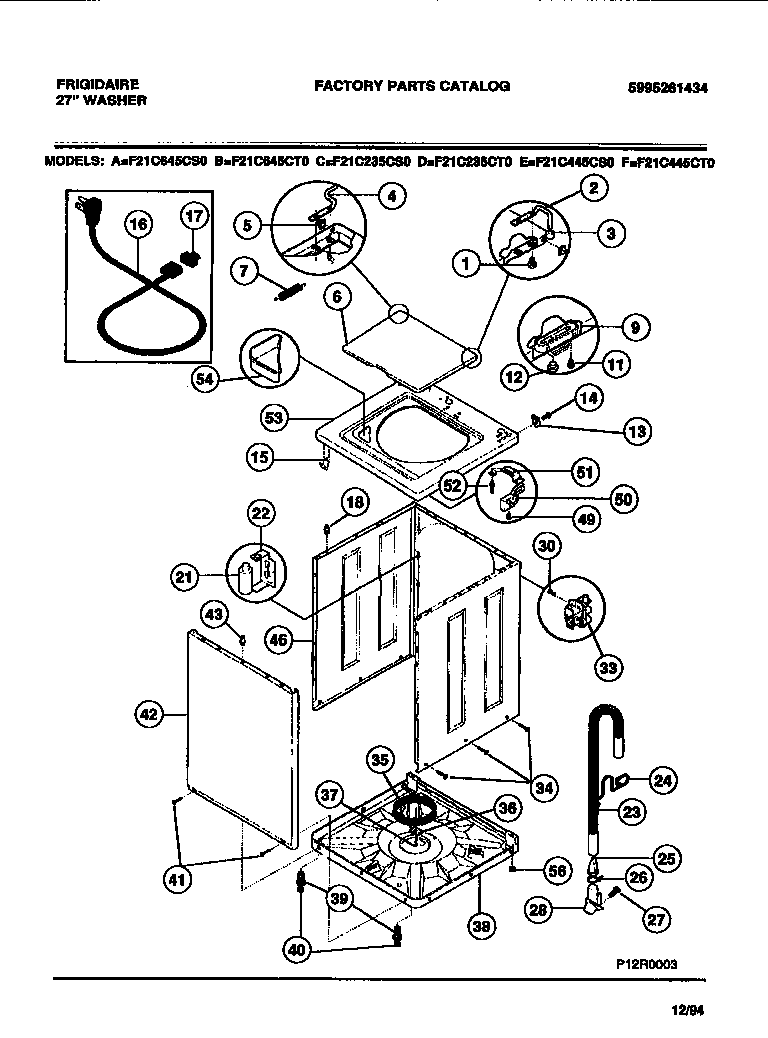

F21C445CT0 02 – CABINET, BASE, WASHER TOP, LID

F21C445CT0 02 – CABINET, BASE, WASHER TOP, LID

Written by

in

F21C445CT0 02 – CABINET, BASE, WASHER TOP, LID

Products

PositionProduct
1SCREW
2WCI 131374210
3WCI 5303208748
4WCI 131385910
55303208743 Frigidaire Grommet
6AWCI 131377901
7134890500 Frigidaire Spring
9131390000 Frigidaire Door Catch-Strike
113204368 Frigidaire Screw-Strike
12134075500 Frigidaire Bumper-LID
13WCI 5303208751
14131168200 Frigidaire Dryer Screw
153205821 Frigidaire Clip
165304505407 Frigidaire Cord
175303209428 Frigidaire Serv.Cord Bushing
21WCI 5308014903
22WCI 5303161252
23WCI 131210200
24RETAINER
253204375 Frigidaire Check Valve
26WCI 131127616
27131205100 Frigidaire Screw
28WCI 3204376
30131202300 Frigidaire Screw
33134190200 Frigidaire Washer Water Valve
34131205500 Frigidaire Screw
35SNUBBER RING
36SHIPPING BLOCK
37WCI 131102900
38WCI 5303300247
39134548800 Frigidaire Washer Leg Levelling
40PAD-LEG
41131302800 Frigidaire Drum Vane Screw
42APANEL – FRONT – ALMD
43WCI 131346400
46AWCI 5303931758
49131243800 Frigidaire Screw
50WCI 3205646
51BRACKET-LID LOCK
52RIVET (3)
53AWCI 5303931760
54WCI 5303208778
56131422200 Frigidaire P-1 Self Level Leg Pad
