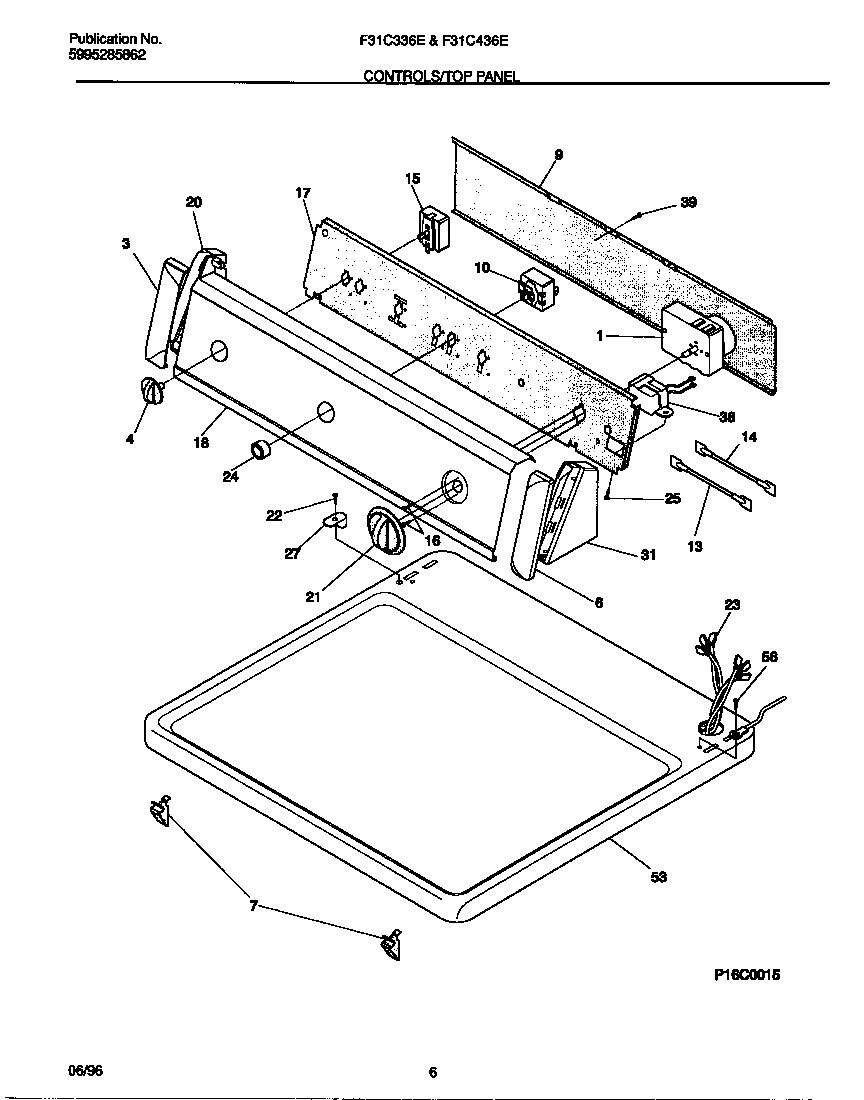

F31C336ES0 04 – CONTROLS/TOP PANEL

Products

Position	Product
*75162	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	131062300 Frigidaire Timer
3	COVER-CAP-LH-WHITE
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	BACKSHEET
10	WCI 131048000
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131582300
20	END CAP-L.H.-WHITE
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 131515400
24	WCI 131111501
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
39	131205100 Frigidaire Screw
53	WCI 131391618
56	131243800 Frigidaire Screw
