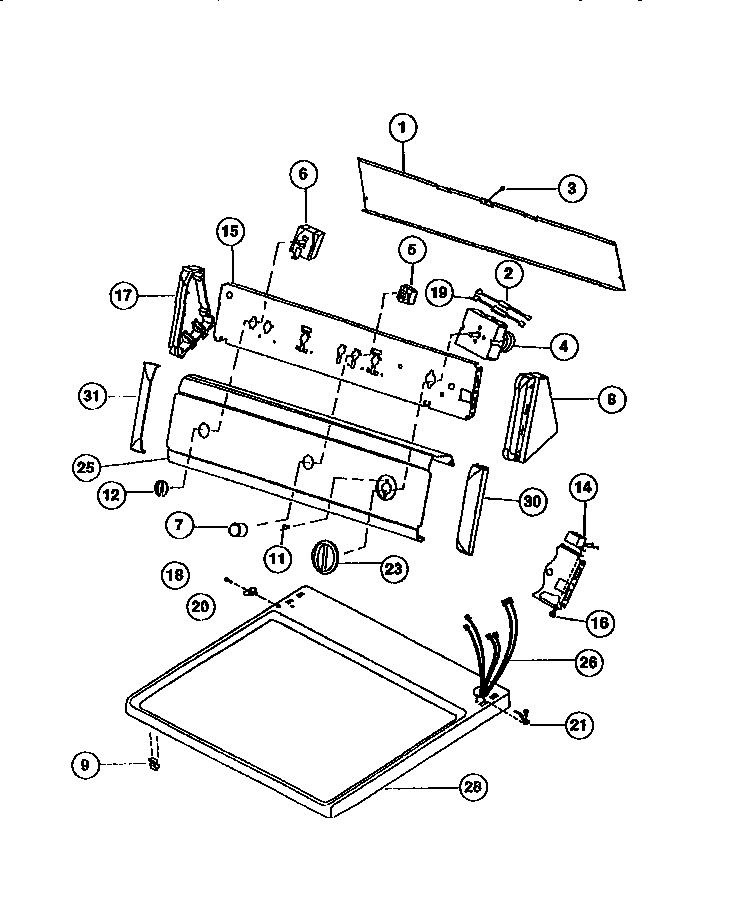

F31C546CS0 04 – CONSOLE & CONTROLS

Products

Position	Product
1	BACKSHEET
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	131719100 Frigidaire Timer Assembly
5	WCI 131048000
6	WCI 131048100
7	WCI 131111501
8	END CAP-R.H.-WHITE
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
12	131858004 Frigidaire Control Knob, White
14	WCI 5303210285
15	WCI 131297306
16	5303015671 Frigidaire Bracket Termination Screw
17	END CAP-L.H.-WHITE
18	WCI 5303289526
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	134011703 Frigidaire Dryer Timer Knob
25	WCI 131403300
26	WCI 131235400
28	WCI 131130402
30	COVER-CAP-RH-WHITE
31	COVER-CAP-LH-WHITE
