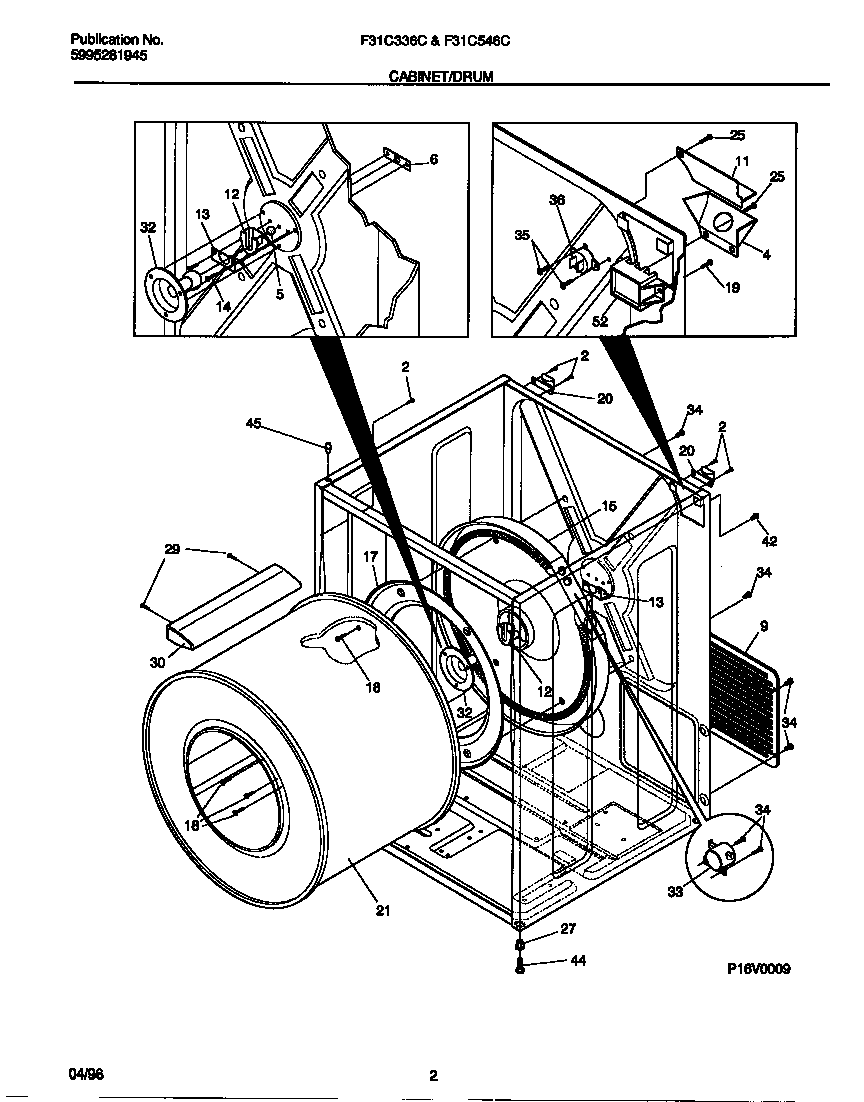

F31C546CT1 02 – CABINET/DRUM

Products

Position	Product
*96880	WCI 131353500
*96881	WCI 5303281153]
4	WCI 3281040
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PLATE-COVER
11	WCI 5303211428
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER ASSY W/HSNG
17	3204254 Frigidaire Baffle Assembly
18A	131168200 Frigidaire Dryer Screw
19	131205300 Frigidaire Screw
20	BRACKET-HINGE
21	WCI 3201199
25	5303015671 Frigidaire Bracket Termination Screw
27	WCI 3201202
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
32	131777700 Frigidaire Dryer Bearing Drum
33	WCI 5303281113
34	131243700 Frigidaire Screw
35	WCI 08010804
36	134120900 Frigidaire Dryer Limiter Thermal
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
44	BOLT-FOOT (4)
45	WCI 131346400
52	134101400 Frigidaire Dryer Kit Terminal Block
