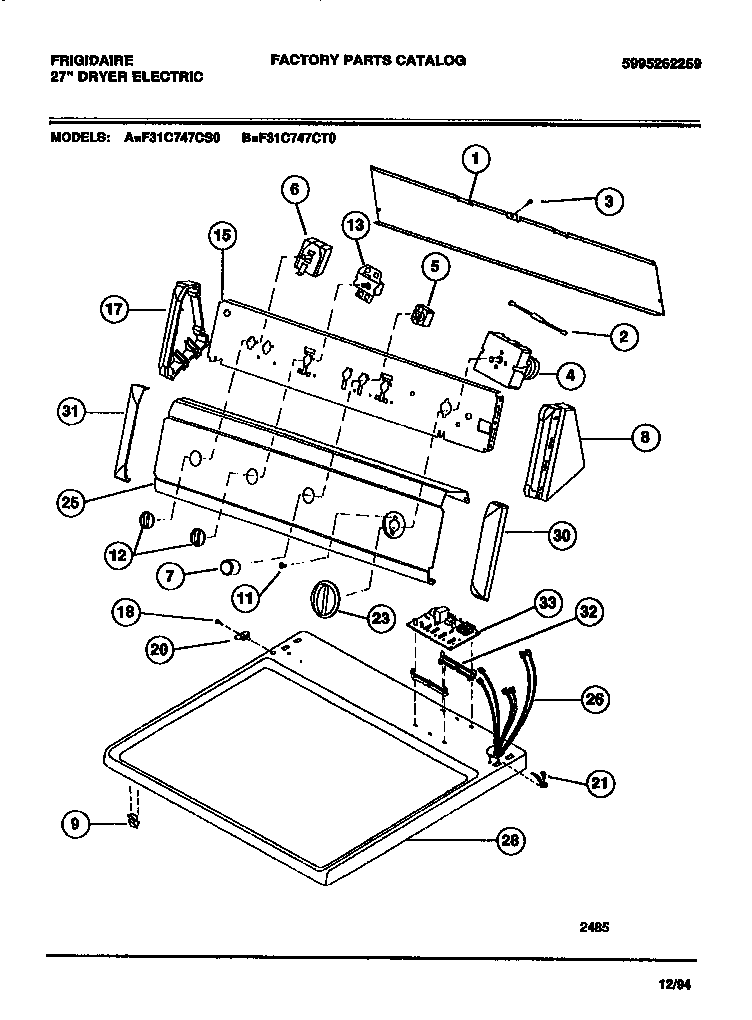

F31C747CS0 04 – CONSOLE, CONTROLS, TOP PANEL

F31C747CS0 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

F31C747CS0 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1BACKSHEET
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131719100 Frigidaire Timer Assembly
5WCI 131048000
6WCI 131048100
7WCI 131111501
8END CAP-R.H.-WHITE
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12131858004 Frigidaire Control Knob, White
13WCI 131048300
13AHARNESS, BUZZER (NON-ILLUSTRATED)
15WCI 131297306
17END CAP-L.H.-WHITE
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23134011703 Frigidaire Dryer Timer Knob
25WCI 131403900
26WCI 131236300
28WCI 131130402
30COVER-CAP-RH-WHITE
31COVER-CAP-LH-WHITE
32WCI 131089800
33WCI 131072000
