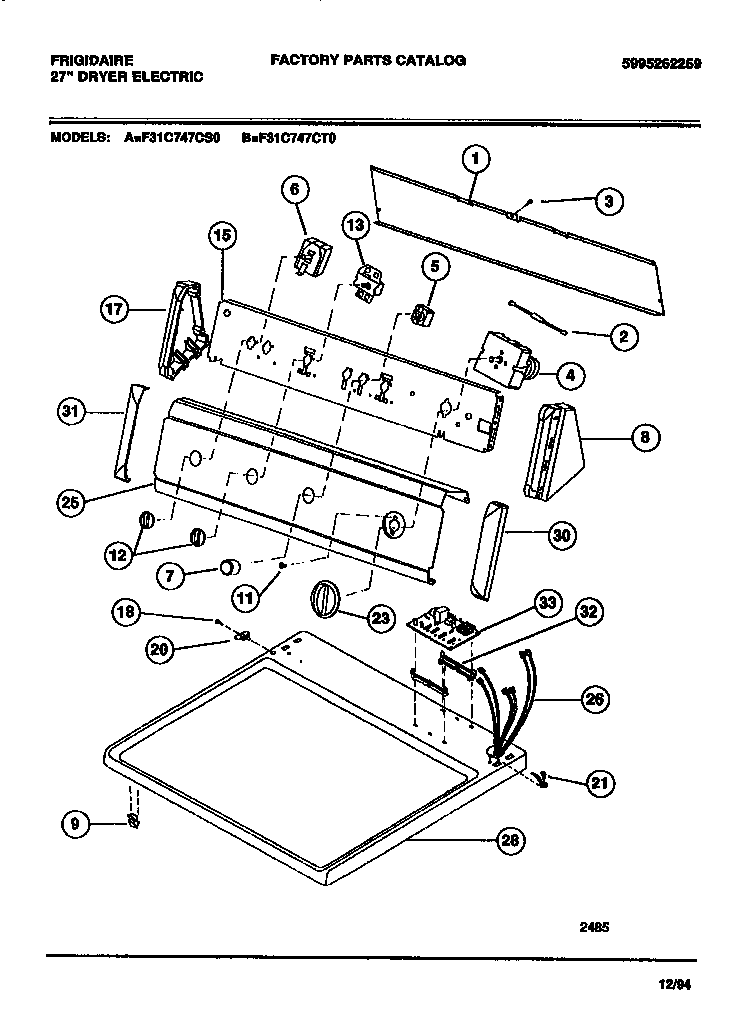

F31C747CT0 04 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
1	BACKSHEET
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	131719100 Frigidaire Timer Assembly
5	WCI 131048000
6	WCI 131048100
7	WCI 131141302
8	WCI 131122702
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
12	WCI 131141102
13	WCI 131048300
13A	HARNESS, BUZZER (NON-ILLUSTRATED)
15	WCI 131297306
17	WCI 131122712
18	WCI 5303289526
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	WCI 131141002
25	WCI 131404100
26	WCI 131236300
28	WCI 131130304
30	WCI 131122602
31	WCI 131122612
32	WCI 131089800
33	WCI 131072000
