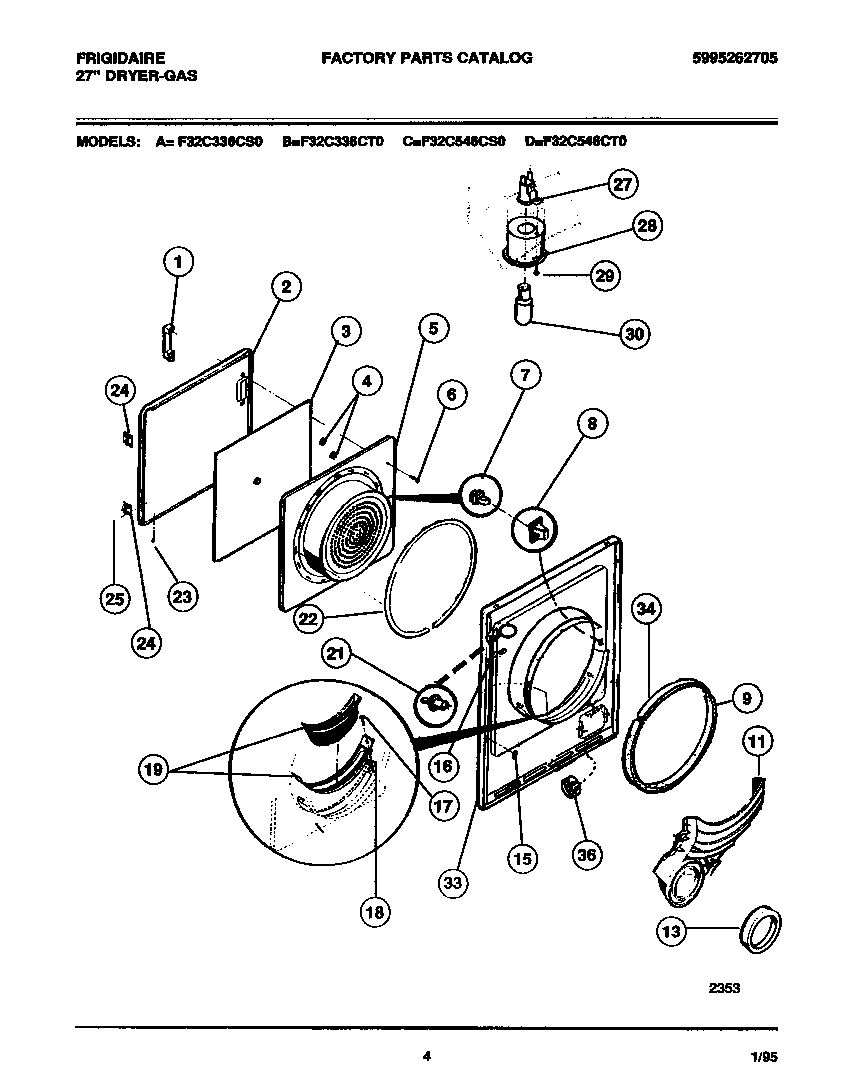

F32C336CS0 03 – DOOR, FRONT PANEL, LINT FILTER

F32C336CS0 03 – DOOR, FRONT PANEL, LINT FILTER

Written by

in

F32C336CS0 03 – DOOR, FRONT PANEL, LINT FILTER

Products

PositionProduct
1WCI 131192301
2PANEL-OUTER DOOR, WHITE
3SHIELD, HEAT
4WCI 3201205
5PANEL – ID WHITE
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11DUCT-AIR
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16WCI 131063700
17131420300 Frigidaire Screw
18CLIP
19TRAP-LINT
21SWITCH-DOOR
22GASKET, DOOR
24HINGE, DOOR (2)
25134156200 Frigidaire Screw
33WCI 5303937118
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
36131397000 Frigidaire Plug
