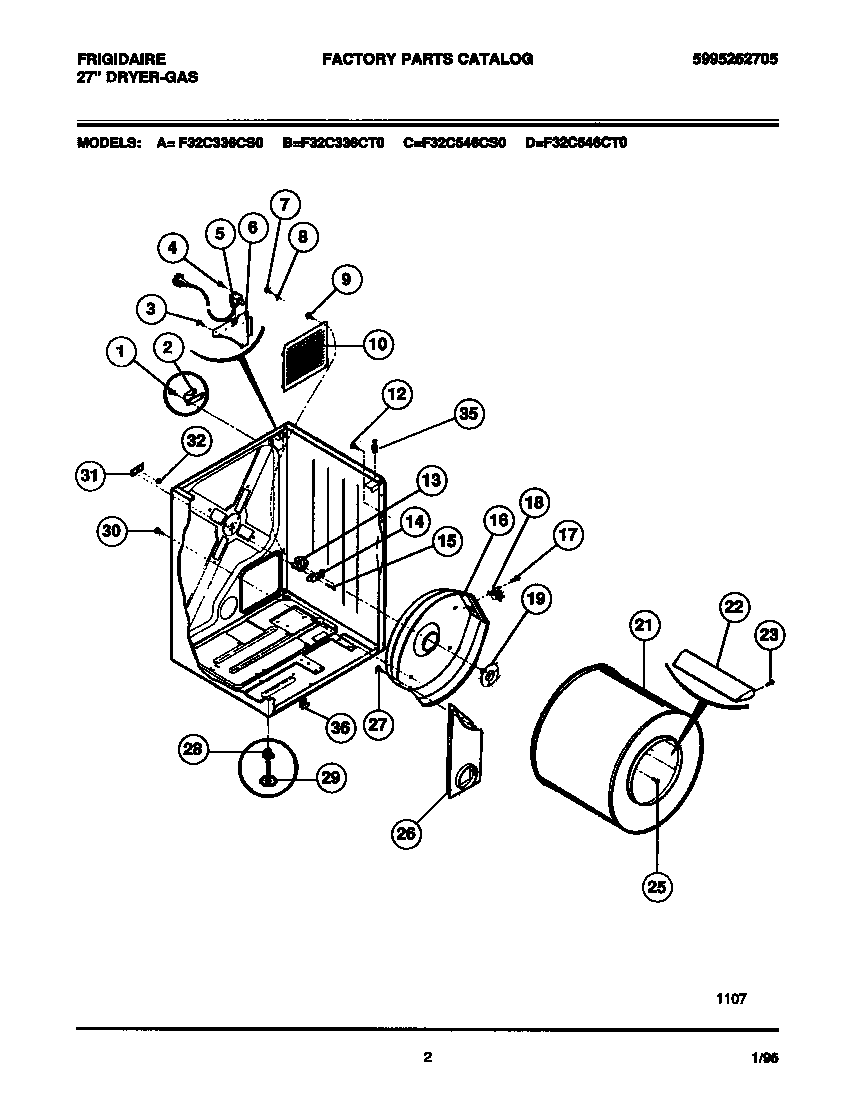

F32C336CT0 02 – CABINET, DRUM, HEAT DUCT

Products

Position	Product
*51120	WCI 5303281153]
1	WCI 08011338
2	BRACKET-HINGE
3	5303015671 Frigidaire Bracket Termination Screw
4	131205300 Frigidaire Screw
5	CORD-SERVICE
6	WCI 3281130
7	134154100 Frigidaire Screw 10-32 x 0.375 Co
10	PLATE-COVER
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	131724301 Frigidaire Dryer Drum Bearing Bracket
15	131205400 Frigidaire Screw
16	HEATER HSG & SEAL ASSEMBLY
18	5308015399 Frigidaire P-1 THERMSTAT-Safety
19	131777700 Frigidaire Dryer Bearing Drum
21	WCI 3201199
22	137552900 Frigidaire Vane
23	WCI 131205200
25	131168200 Frigidaire Dryer Screw
26	DUCT-HEAT
27	SCREW
28	WCI 3201202
29	BOLT-FOOT (4)
30	131243700 Frigidaire Screw
31	5303281020 Frigidaire Ball Clip
32	5303281019 Frigidaire Ball Assembly
35	WCI 131346400
36	WCI 131353500
