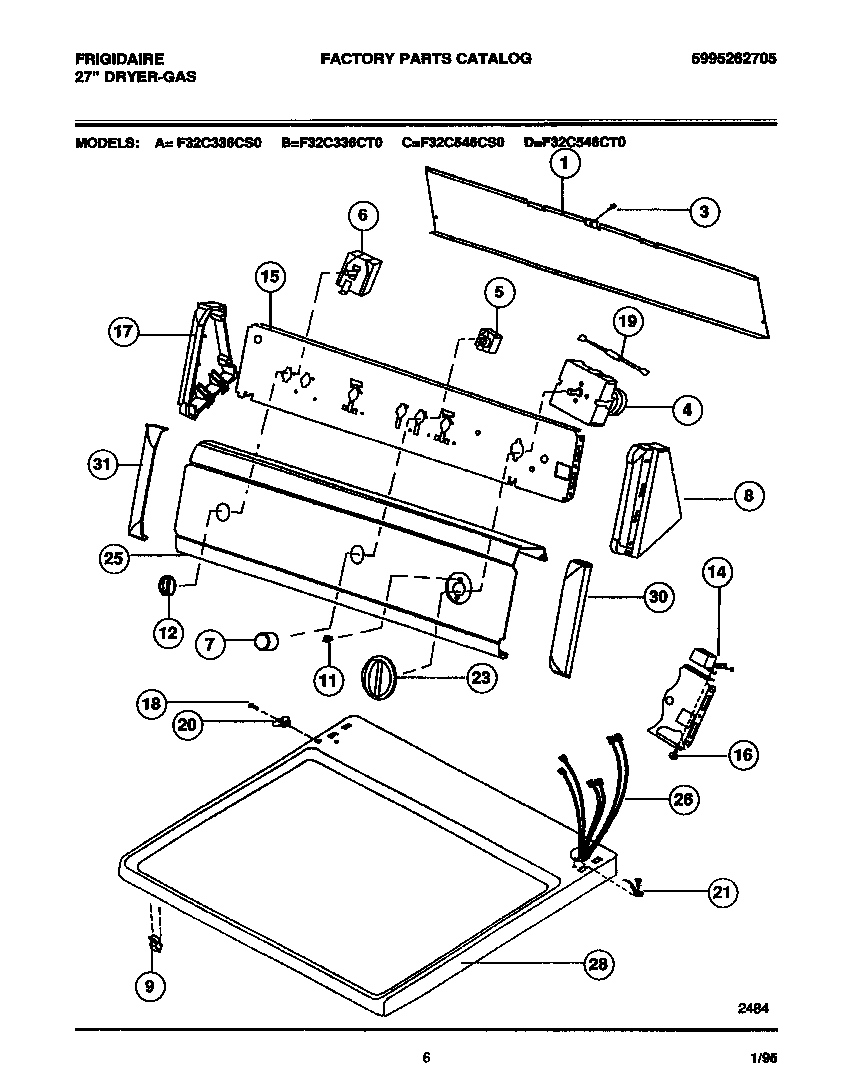

F32C336CT0 04 – CONSOLE, CONTROLS, TOP PANEL

F32C336CT0 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

F32C336CT0 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1BACKSHEET
3131205100 Frigidaire Screw
4WCI 131062400
5WCI 131048000
7WCI 131141302
8WCI 131122702
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
15WCI 131297306
17WCI 131122712
18WCI 5303289526
19REGISTER
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131141002
25PANEL-CONTROL
26WCI 131159700
28WCI 131130304
30WCI 131122602
31WCI 131122612
