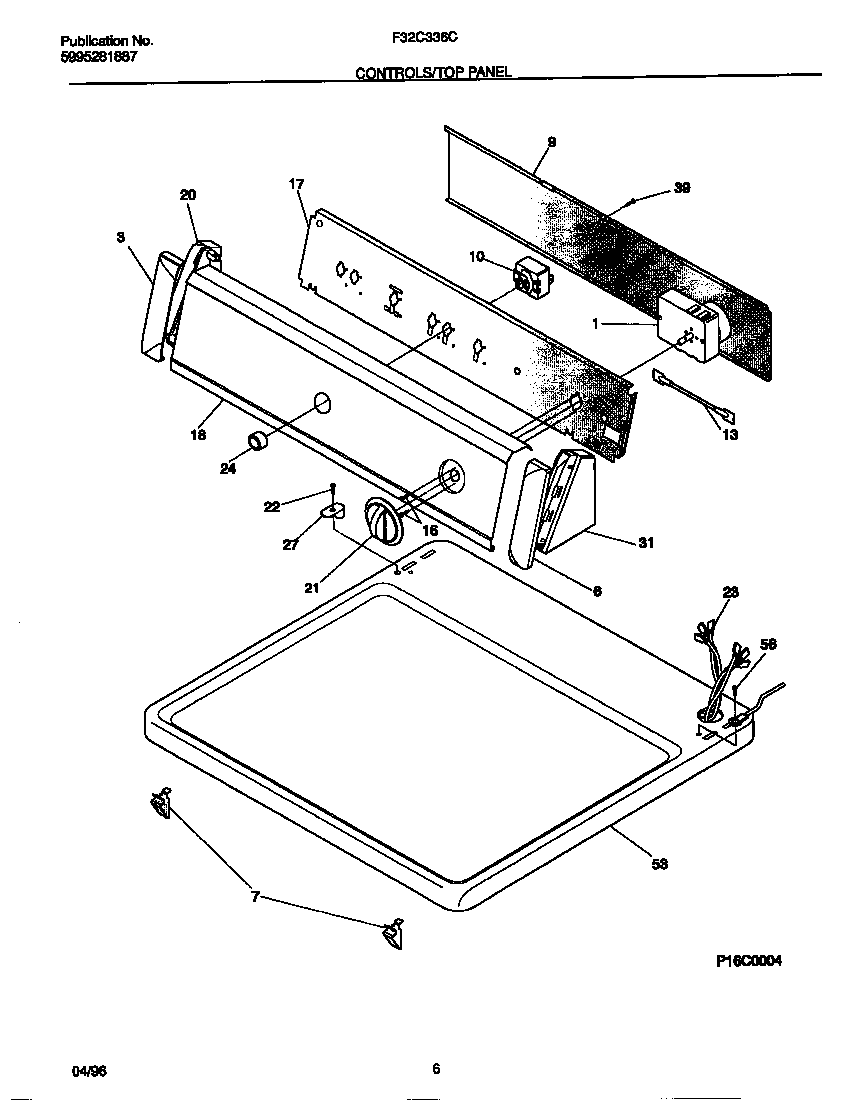

F32C336CT1 04 – CONTROLS/TOP PANEL

F32C336CT1 04 – CONTROLS/TOP PANEL

Written by

in

F32C336CT1 04 – CONTROLS/TOP PANEL

Products

PositionProduct
*153635303303590 Frigidaire Dryer 4.0" Cable Tie
1WCI 131062400
3WCI 131122612
6WCI 131122602
73205821 Frigidaire Clip
9BACKSHEET
10WCI 131048000
13REGISTER
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18PANEL-CONTROL
20WCI 131122712
21WCI 131141002
22WCI 131266300
23WCI 131569600
24WCI 131111504
27CLIP-CONSOLE MTG
31WCI 131122702
39131205100 Frigidaire Screw
53WCI 131130404
56131243800 Frigidaire Screw
