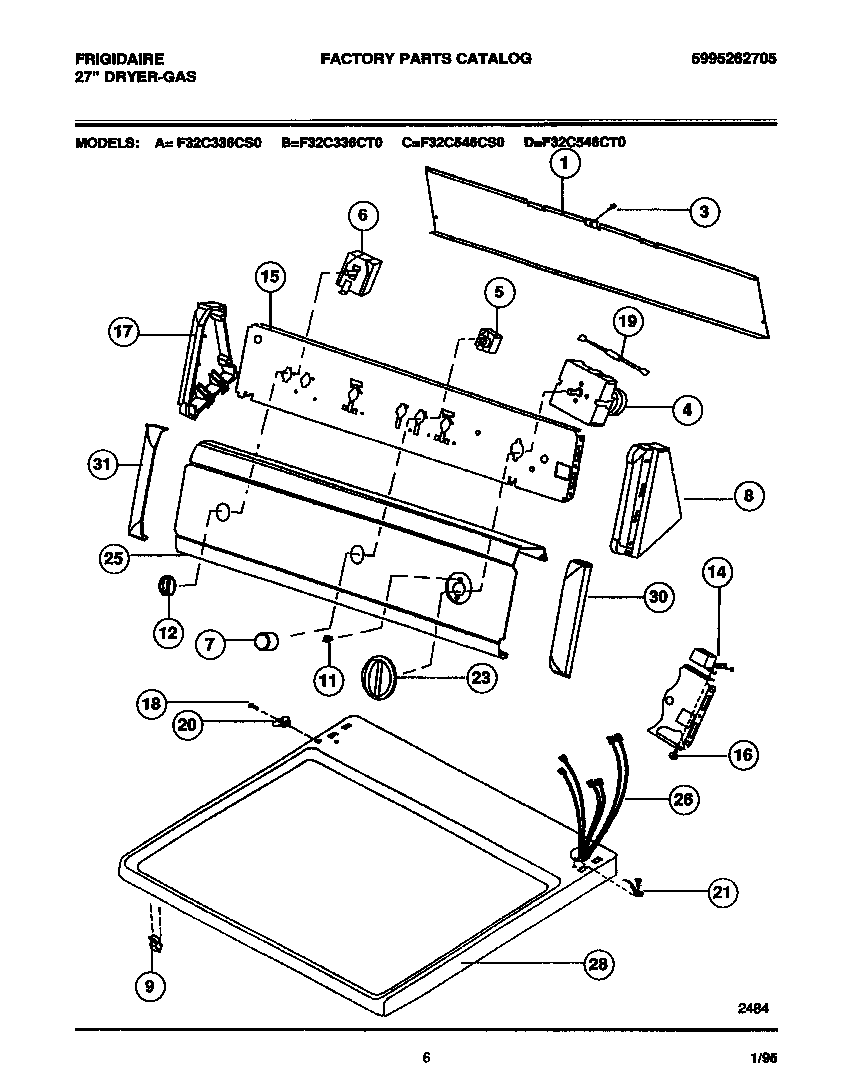

F32C546CS0 04 – CONSOLE, CONTROLS, TOP PANEL

F32C546CS0 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

F32C546CS0 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1BACKSHEET
3131205100 Frigidaire Screw
4WCI 131063300
5WCI 131048000
6WCI 131048100
7WCI 131111501
8END CAP-R.H.-WHITE
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12131858004 Frigidaire Control Knob, White
14WCI 5303210285
15WCI 131297306
165303015671 Frigidaire Bracket Termination Screw
17END CAP-L.H.-WHITE
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23134011703 Frigidaire Dryer Timer Knob
25WCI 131402700
26WCI 131384500
28WCI 131130402
30COVER-CAP-RH-WHITE
31COVER-CAP-LH-WHITE
