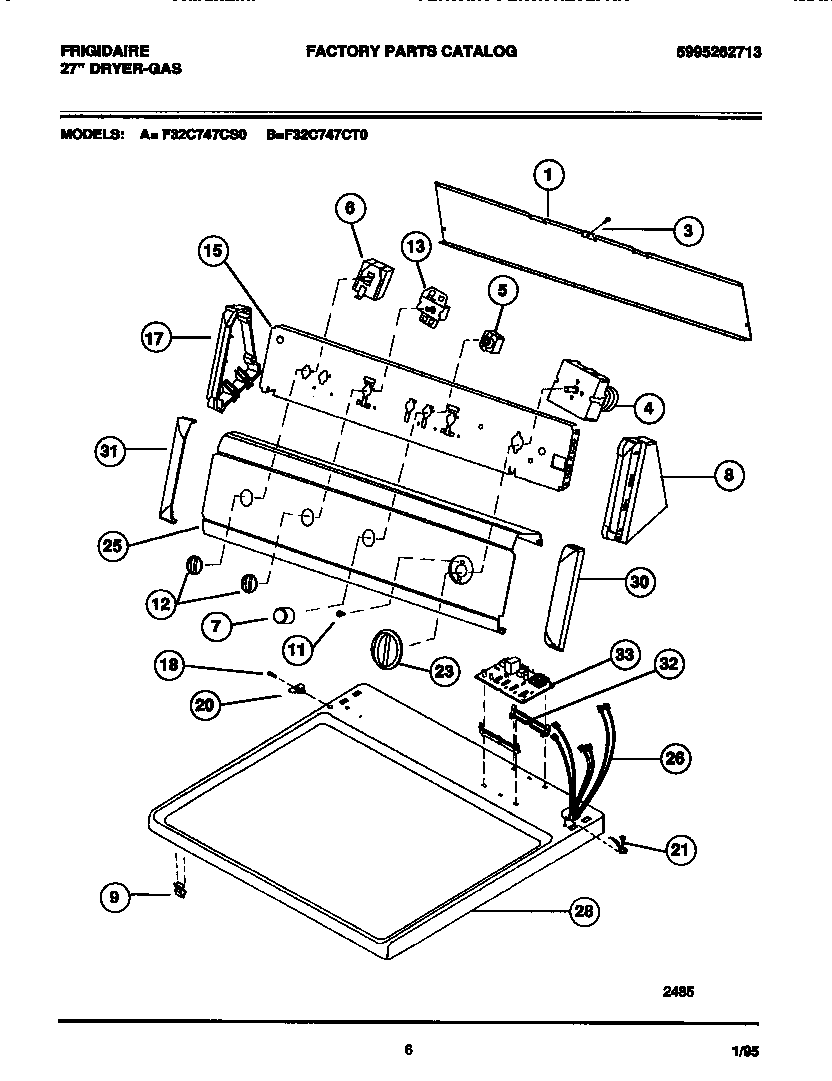

F32C747CS0 04 – CONSOLE, CONTROLS, TOP PANEL

F32C747CS0 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

F32C747CS0 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1BACKSHEET
3131205100 Frigidaire Screw
4WCI 131111300
5WCI 131048000
6WCI 131362500
7WCI 131111501
8END CAP-R.H.-WHITE
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12131858004 Frigidaire Control Knob, White
13WCI 131048300
15WCI 131297306
17END CAP-L.H.-WHITE
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23134011703 Frigidaire Dryer Timer Knob
25WCI 131403900
26WCI 131370100
28WCI 131130402
30COVER-CAP-RH-WHITE
31COVER-CAP-LH-WHITE
32WCI 131089800
33WCI 131167400
