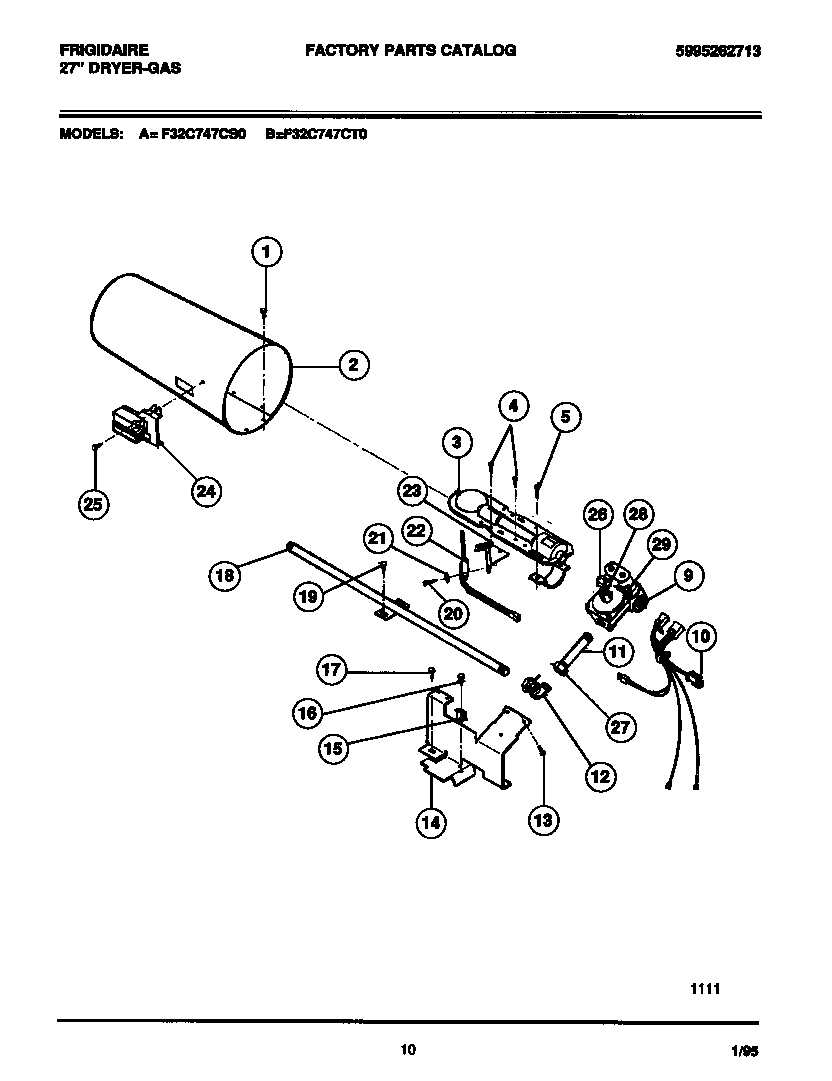

F32C747CT0 06 – GAS VALVE, BURNER ASSEMBLY, SENSOR

Products

Position	Product
*07763	LP GAS CONV KIT
2	TUBE ASSY BURNER
3	134264900 Frigidaire Burner
9	WCI 131180500
10	HARNESS
11	CONNECTION-UNION MALE
12	VALVE-ANGLE
13	131243800 Frigidaire Screw
14	WCI 5303281145
15	CLIP
17	SCREW
18	WCI 08015271
19	WCI 5303010202
20	WCI 5303281158
21	5300809968 Frigidaire Dishwasher P-1 Washer
22	5303937186 Frigidaire Dryer Flat Igniter Assembly
23	WCI 5303281149
24	WCI 131196900
25	131243700 Frigidaire Screw
26	WCI 131180800
27	NUT-HEX UNION
28	5303931775 Frigidaire Dryer Coil Kit
