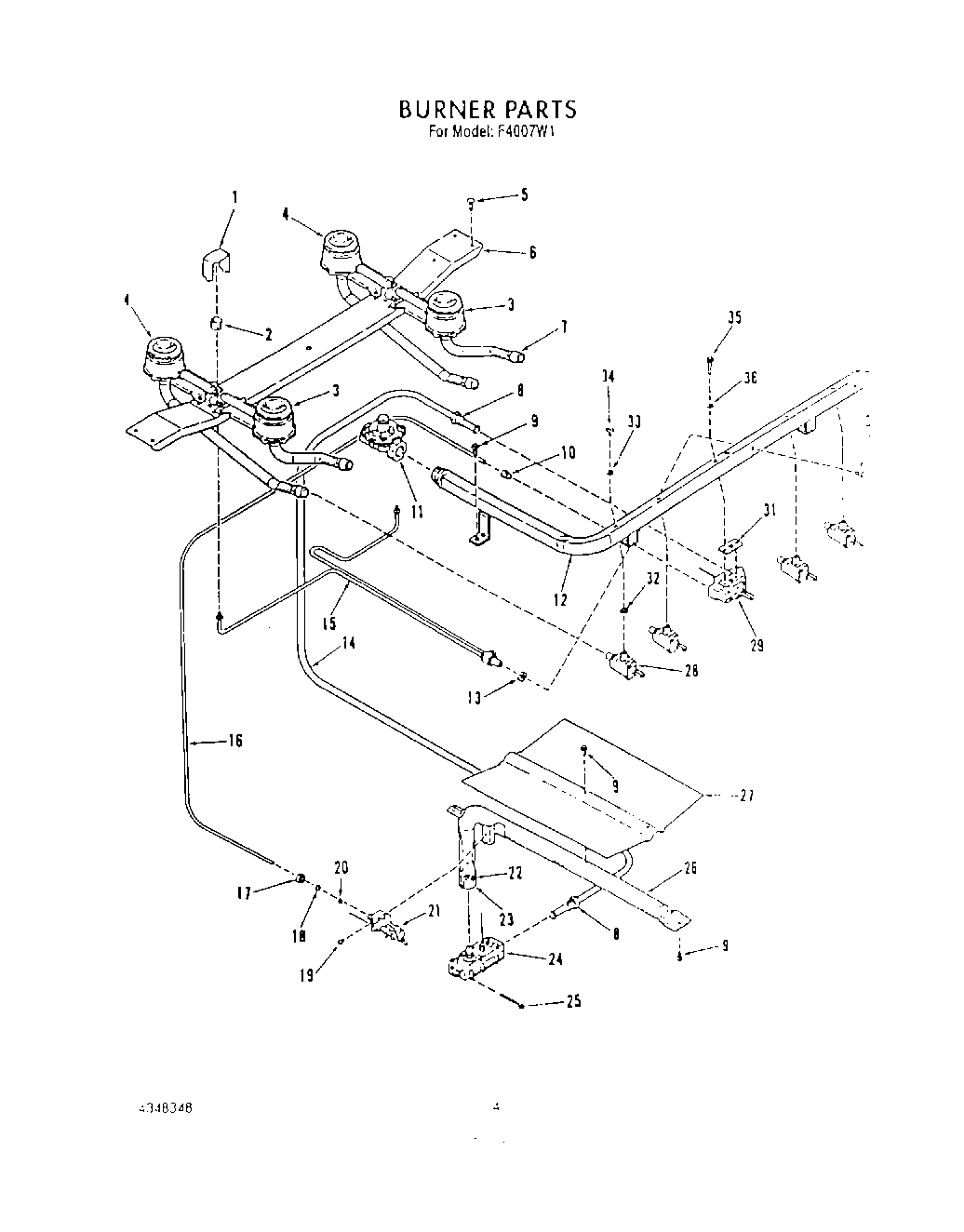

| 1 | Shield, Pilot |
| 2 | Cup, Pilot |
| 3 | Burner, Front-Lt. or Rt. (Incl. No.8) |
| 4 | Burner-Rear, Lt. or Rt. (Incl. No.8) |
| 5 | Screw No.6-20x3/8 |
| 6 | Support-Top Burner |
| 7 | Air Shutter |
| 8 | Nut, Inverted 3/8 |
| 9 | SCREW |
| 10 | Nut, Loxit |
| 11 | Pressure Regulator (LP Gas) |
| 11 | Regulator-Pressure |
| 12 | Manifold Pipe |
| 13 | Seal |
| 14 | Tubing 3/8`` |
| 15 | Filter-w/Pilot |
| 16 | Tubing 3/16 |
| 17 | Compression Nut |
| 18 | Compression Sleeve |
| 19 | Screw, No.10-24 x 1/4 |
| 20 | Orifice Cup |
| 21 | Pilot (Inc`s 35) |
| 22 | Screw, Adjustment-Air Shutter |
| 23 | Shutter, Air |
| 24 | Valve, Safety (LP Gas) |
| 24 | Valve, Safety |
| 25 | Screw, No.10-32 x 2 |
| 26 | Burner Assembly, (Inc`s 25, 29, 30) |
| 27 | Baffle, Oven Burn |
| 28 | Valve, Gas (4) (LP Gas) |
| 28 | Gas Valve (LF, LR and RR) |
| 29 | Thermostat (Inc`s. No.31) |
| 30 | Screw, Mounting (for No.15) |
| 31 | Seal |
| 32 | Seal, Valve-1 ea. Illus. 10 & 20 |
| 33 | Seal (for No.34) |
| 34 | Screw, Mounting-1 Each-illus. 10 & 20 |
| 35 | Screw |
| 36 | Seal |
