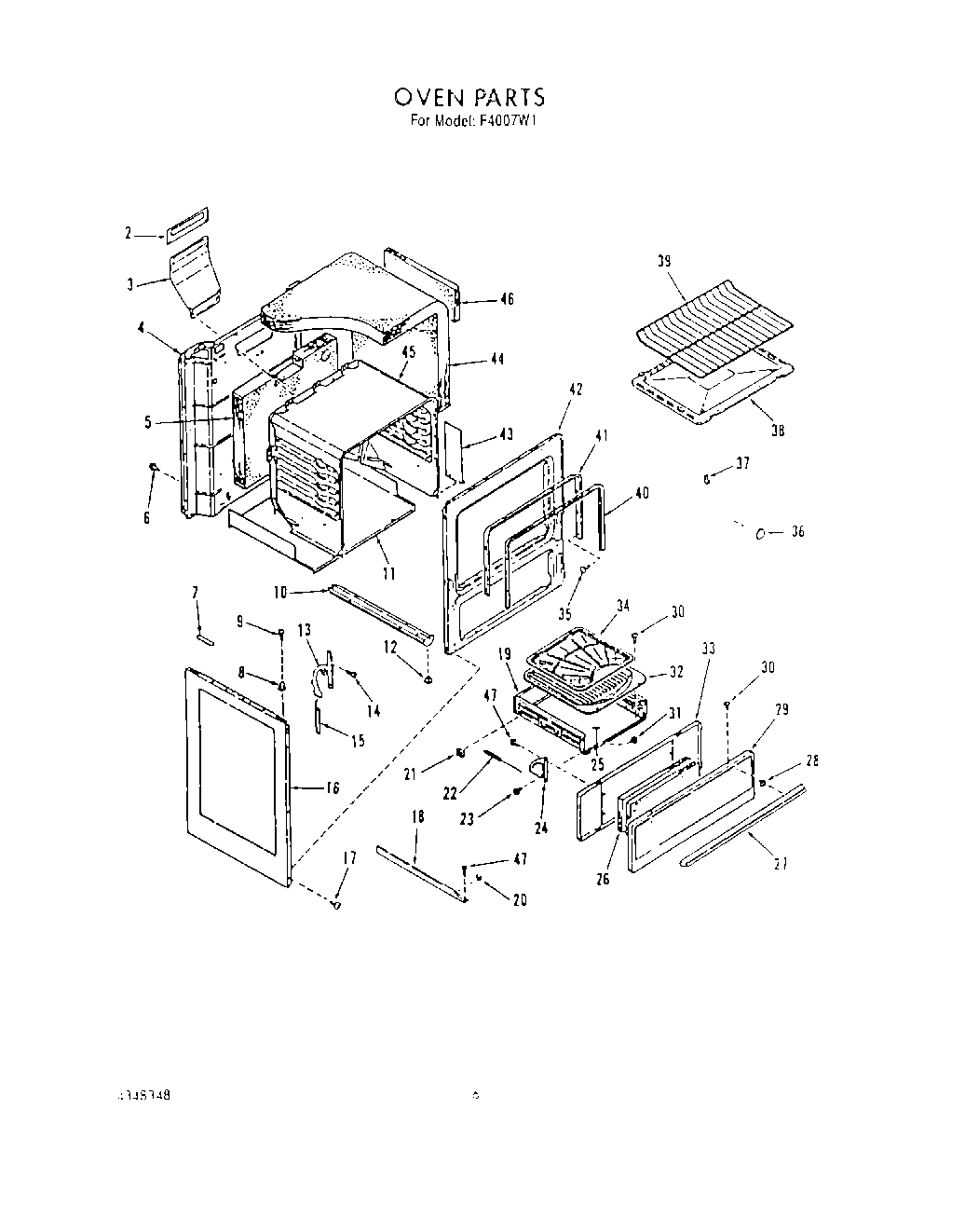

F4007^1 05 – OVEN

Products

Position	Product
2	Insulation, Flue Deflector
3	Deflector
4	Cover, Back
5	Insulation-Back
6	W10850756 Whirlpool Screw
7	Spacer
8	Strike
9	Screw No.6-32×7/8
10	Base, W/ Levelers (2)
11	Bottom, Main
12	Levelers, Leg (4)
13	Hinge-Oven Door (Left)
13	Hinge-Oven Door (Right)
14	Screw
15	Spring-Door
16	Side-Body (Wheat)
16	Side, Cabinet (White)
16	Side, Cabinet (Almond)
18	Guide-Bro. Drawer (Left side)
18	Guide-Bro. Drawer (Right Side)
19	Drawer, Broiler
20	Slide Block-Front
21	Slide Block-Rear
22	Spring, Broiler-Drawer
23	Bolt, Shoulder
24	Hinge-Broiler Drawer (Right)
24	Hinge-Broiler Drawer (Left)
25	Bottom, Drawer
27	Handle
28	Spacer, Dr. Handle
29	Panel-Broiler Door (Black)
29	Panel-Broiler Door (Almond)
29	Panel-Broiler Door (White)
30	Screw, No.10-32 x 1/2
31	W10080180 Whirlpool Nut
32	Pan, Broiler
33	Lining, Broiler Door
34	Grid, Broiler Pan
35	WP308685 Whirlpool Microwave Screw
36	Plug Button
37	Clip, Thermostat
38	Bottom, Oven
39	Rack, Oven (2)
40	Seal, Oven Door
41	Retainer, Oven-Door-Seal
42	Frame, Front
43	Retainer, Insul., (Lt/Rt)
44	Insulation, Wrap
45	Oven
46	Insulation (Rt/Lt)
47	SCREW
