F4007W1 05 – OVEN
Written by
in

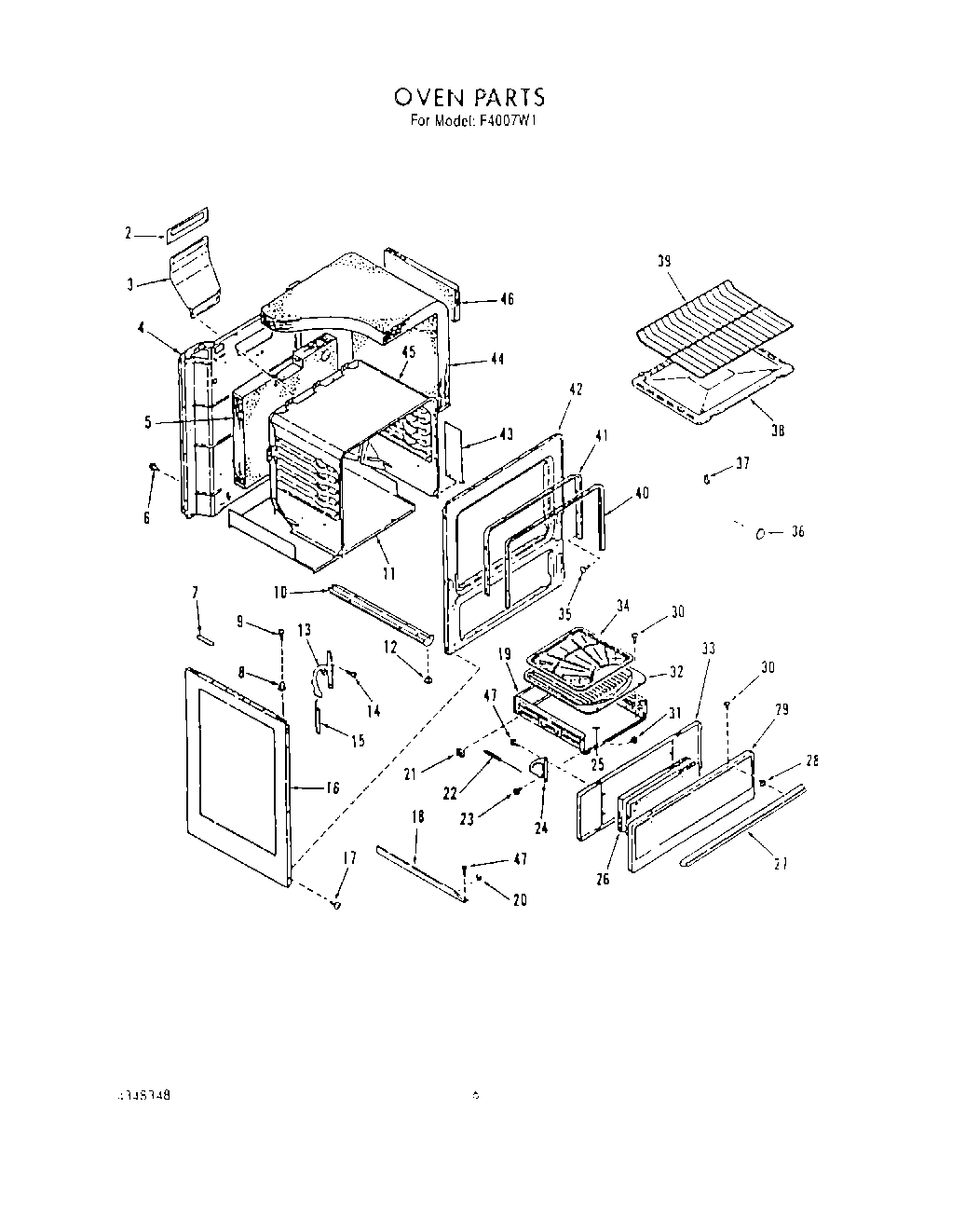

F4007W1 05 – OVEN
Products
Position
Product
2
Insulation, Flue Deflector
3
Deflector
4
Cover, Back
5
Insulation-Back
6
W10850756 Whirlpool Screw
7
Spacer
8
Strike
9
Screw No.6-32×7/8
10
Base, W/ Levelers (2)
11
Bottom, Main
12
Levelers, Leg (4)
13
Hinge-Oven Door (Left)
13
Hinge-Oven Door (Right)
14
Screw
15
Spring-Door
16
Side-Body (Wheat)
16
Side, Cabinet (White)
16
Side, Cabinet (Almond)
18
Guide-Bro. Drawer (Left side)
18
Guide-Bro. Drawer (Right Side)
19
Drawer, Broiler
20
Slide Block-Front
21
Slide Block-Rear
22
Spring, Broiler-Drawer
23
Bolt, Shoulder
24
Hinge-Broiler Drawer (Right)
24
Hinge-Broiler Drawer (Left)
25
Bottom, Drawer
27
Handle
28
Spacer, Dr. Handle
29
Panel-Broiler Door (Black)
29
Panel-Broiler Door (Almond)
29
Panel-Broiler Door (White)
30
Screw, No.10-32 x 1/2
31
W10080180 Whirlpool Nut
32
Pan, Broiler
33
Lining, Broiler Door
34
Grid, Broiler Pan
35
WP308685 Whirlpool Microwave Screw
36
Plug Button
37
Clip, Thermostat
38
Bottom, Oven
39
Rack, Oven (2)
40
Seal, Oven Door
41
Retainer, Oven-Door-Seal
42
Frame, Front
43
Retainer, Insul., (Lt/Rt)
44
Insulation, Wrap
45
Oven
46
Insulation (Rt/Lt)
47
SCREW
←
