F4057W1 02 – BACKGUARD , LIT/OPTIONAL
Written by
in

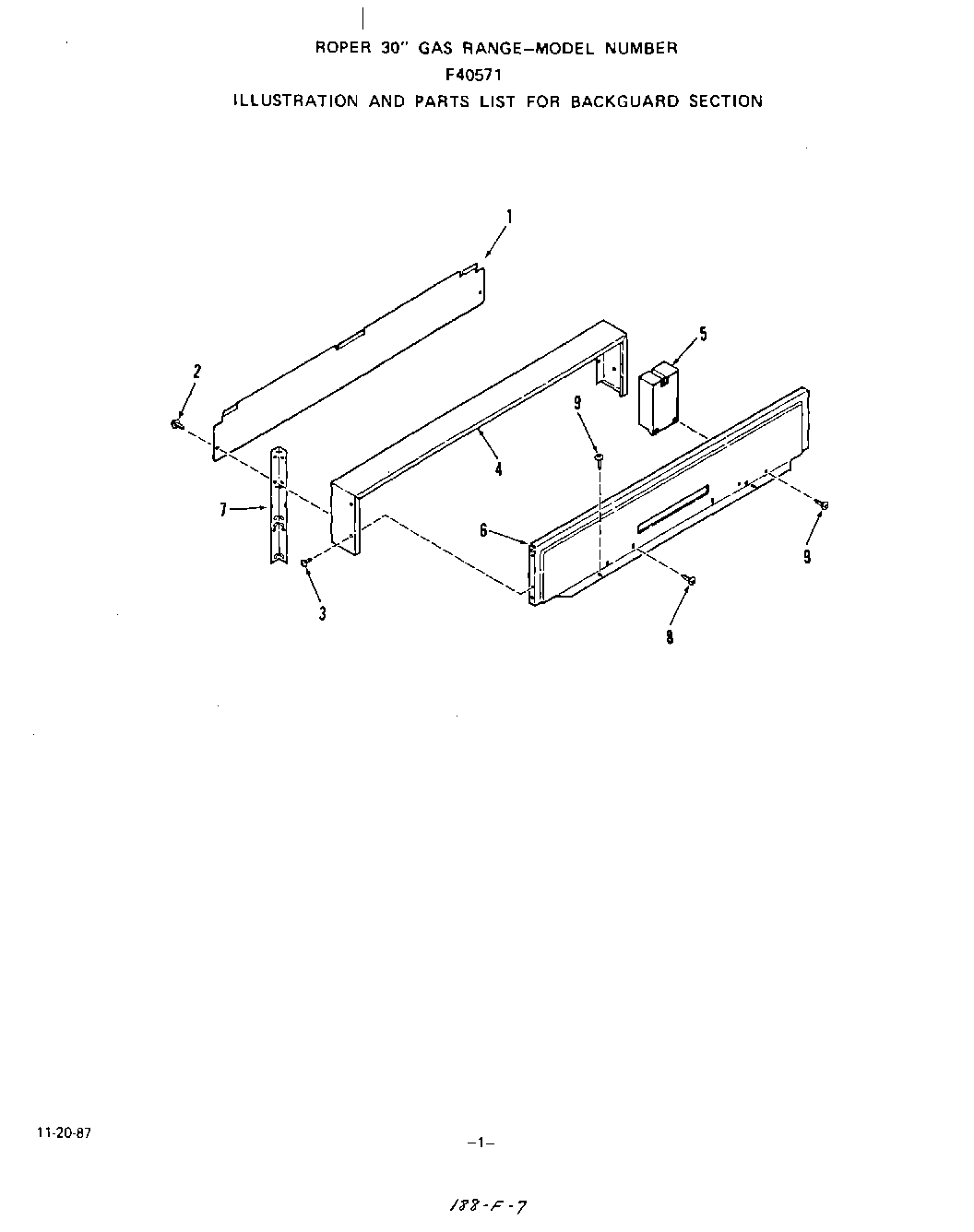

F4057W1 02 – BACKGUARD , LIT/OPTIONAL
Products
Position
Product
1
Wire Cover-Backguard
2
Screw 10-16×7/16“
3
Screw-10-32×1/2“
4
Frame – Backguard
5
Module – Spark Igniter
6
Backguard Panel
7
Support-Backguard (Lt. or Rt.)
8
Screw 10ABx1/2“
9
Screw 13-16 x 1/2“
←
