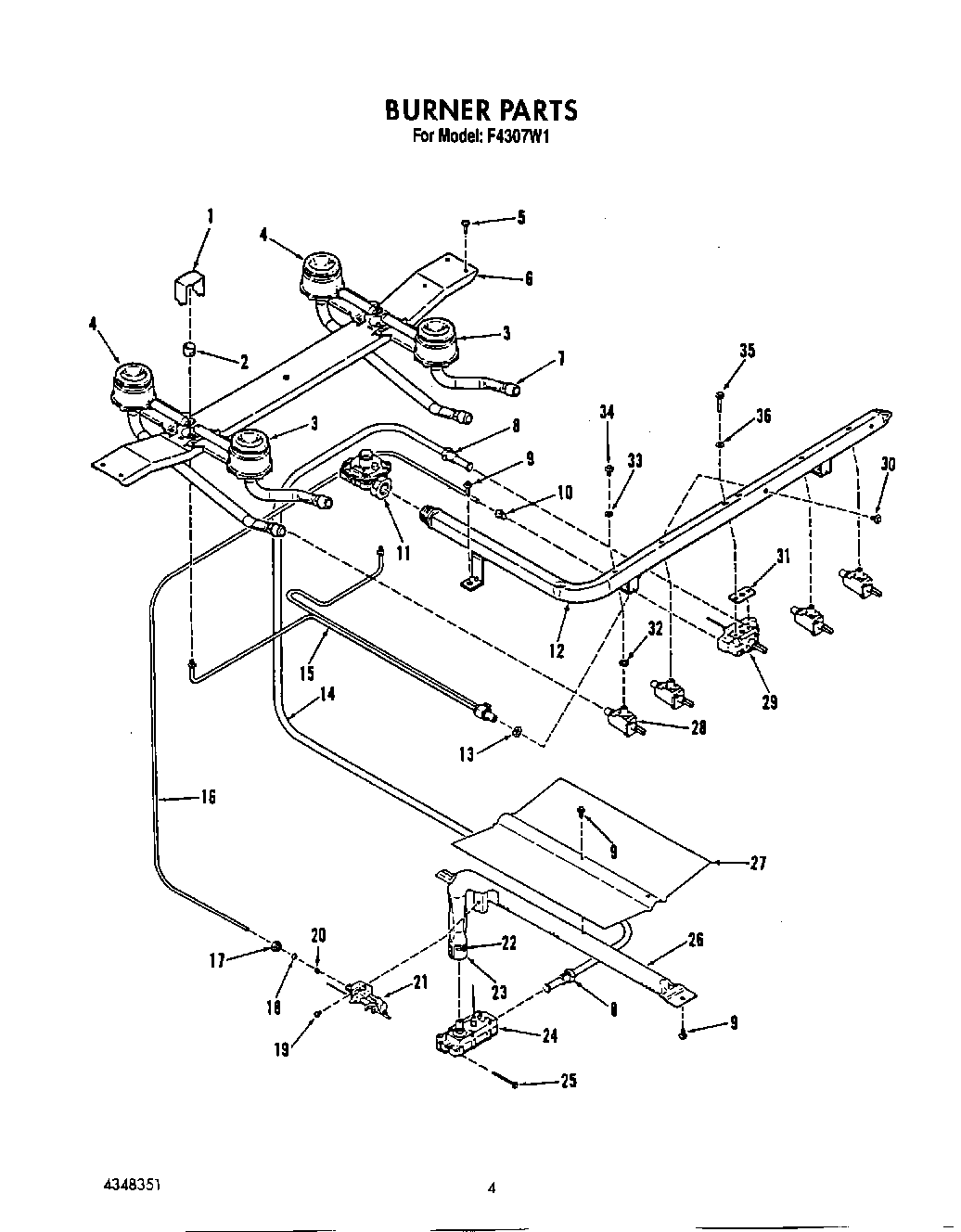

F4307W1 04 – BURNER

F4307W1 04 – BURNER

Written by

in

F4307W1 04 – BURNER

Products

PositionProduct
1Shield, Pilot
2Cup, Pilot
3Burner, Front-Lt. or Rt. (Incl. No.8)
4Burner-Rear, Lt. or Rt. (Incl. No.8)
5Screw No.6-20×3/8
6Support-Top Burner
7Air Shutter
8Nut, Inverted 3/8
9SCREW
10Nut, Loxit
11Regulator-Pressure
11Pressure Regulator (LP Gas)
12Manifold Pipe
13Side Panel (Right)
14Tubing 3/8“
15Filter w/Pilot
16Tubing 3/16
17Compression Nut
18Compression Sleeve
19Screw, No.10-24 x 1/4
20Orifice Cup
21Pilot (Inc`s 35)
22Screw, Adjustment-Air Shutter
23Shutter, Air
24Valve, Safety (LP Gas)
24Valve, Safety
25Screw, No.10-32 x 2
26Burner Assembly, (Inc`s 25, 29, 30)
27Baffle, Oven Burn
28Valve, Gas (4) (LP Gas)
28Gas Valve (LF, LR and RR)
29Thermostat (Inc`s. No.31)
30Screw, Mounting (for No.15)
31Seal
32Seal, Valve-1 ea. Illus. 10 & 20
33Seal (for No.34)
34Screw, Mounting-1 Each-illus. 10 & 20
35Screw
36Seal
