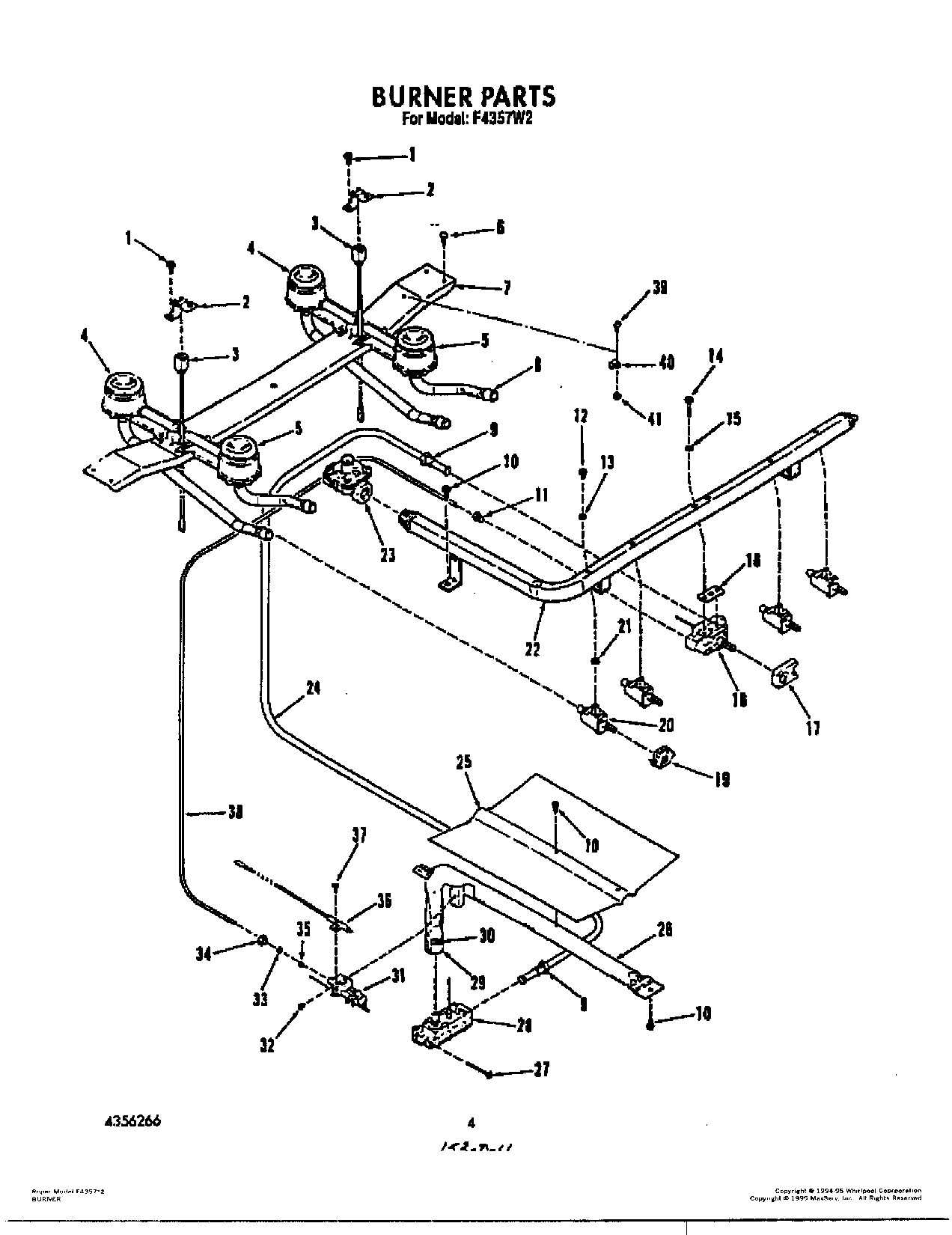

F4357L2 04 – BURNER

Products

Position	Product
1	WP489128 Whirlpool Refrigerator Screw
2	Bracket-Ignitor (Lt or Rt)
3	Electrode (Right)
3	Electrode (Left)
4	Burner-Rear, Lt. or Rt. (Incl. No.8)
5	Burner, Front-Lt. or Rt. (Incl. No.8)
6	Screw No.6-20×3/8
7	Support-Top Burner
8	Air Shutter
9	Nut, Inverted 3/8
10	SCREW
11	Nut, Loxit
12	Screw, Mounting-1 Each-illus. 10 & 20
13	Seal (for No.26)
14	Screw
15	Seal
16	Seal
17	Switch, Thermostat
18	Thermostat, (Inc`s No.16)
19	Switch, Gas Valve
20	Gas Valve (LF, LR and RR)
21	Seal, Valve-1 ea. Illus. 10 & 20
22	Manifold Pipe
23	Regulator-Pressure
24	3/8 Tubing (Inc`s No.9)
25	Baffle, Oven Burn
26	Burner Assembly, (Inc`s 25, 29, 30)
27	Screw, No.10-32 x 2
28	Control Valve, (Inc`s No.31 ,35)
29	Shutter, Air
30	Screw, Adjustment-Air Shutter
31	Pilot (Inc`s 35)
32	Screw, No.10-24 x 1/4
33	Compression Sleeve
34	Compression Nut
35	Orifice Cup
36	Electrode
37	Screw
38	Tubing 3/16
39	Screw, No.8-32 x 3/8
40	Clip (For No.1)
41	WP488130 Whirlpool Air Conditioner Nut
