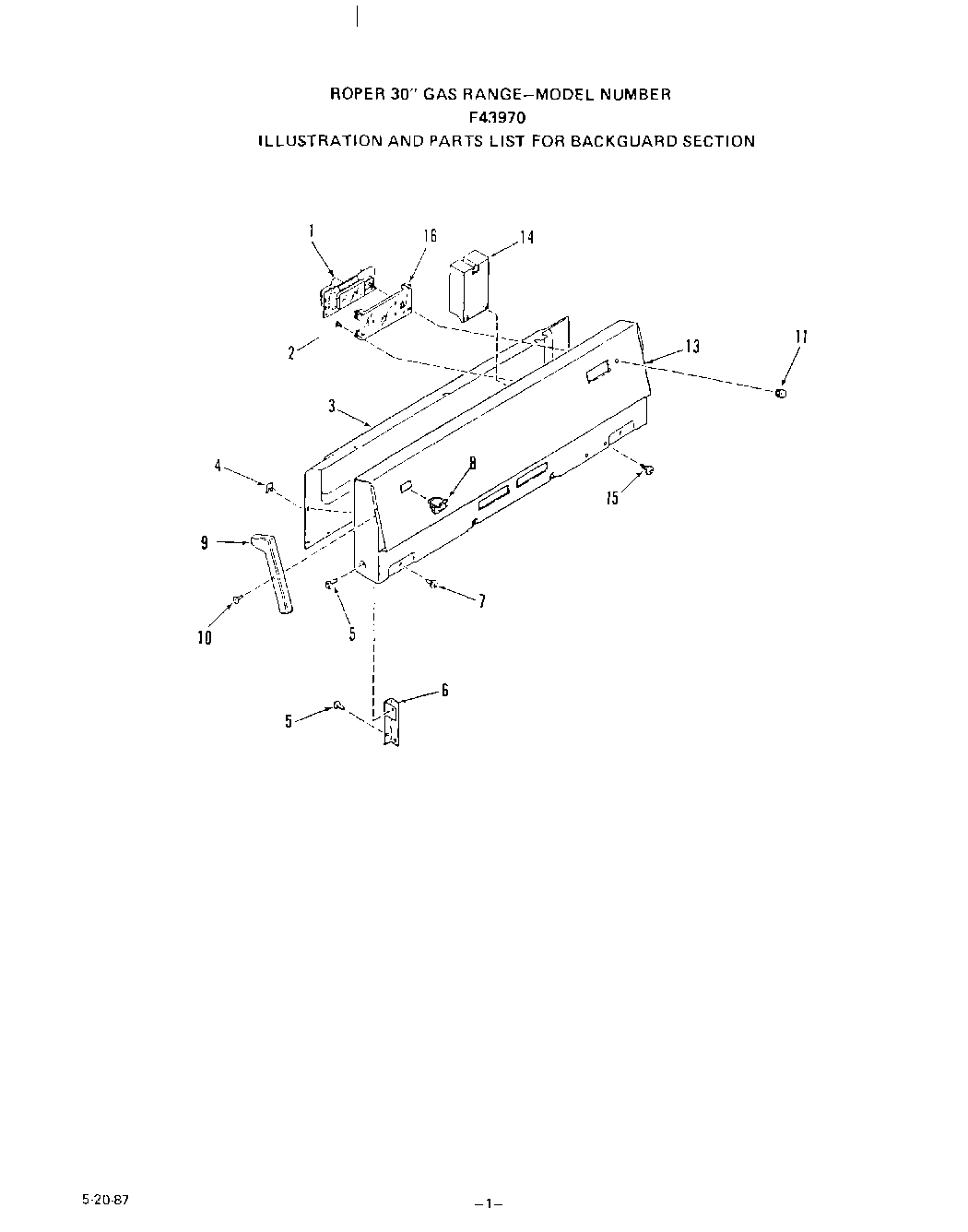

F4397^0 02 – BACKGUARD

F4397^0 02 – BACKGUARD

Written by

in

F4397^0 02 – BACKGUARD

Products

PositionProduct
xUse & Care Manual
xInstallation Guide
xRepair Parts List
1Clock
2Screw 6-32×1/2“
3Wire Cover
4Clip
5Screw 10-16×7/16“
6Support-Backguard (Left)
6Support-Backguard (Right)
7Screw 10ABx1/2“
8Switch-Oven Light
9Right
9Left
10Screw 6-20×3/8“
11Knob-Clock
13Panel-Backguard-Black
14Module – Spark Igniter
15Screw 6Ax3/8“
16Wire Harness (Oven Light)
16Wire Harness (Main)
16Switches – Gas Valve
16Clock Lens
