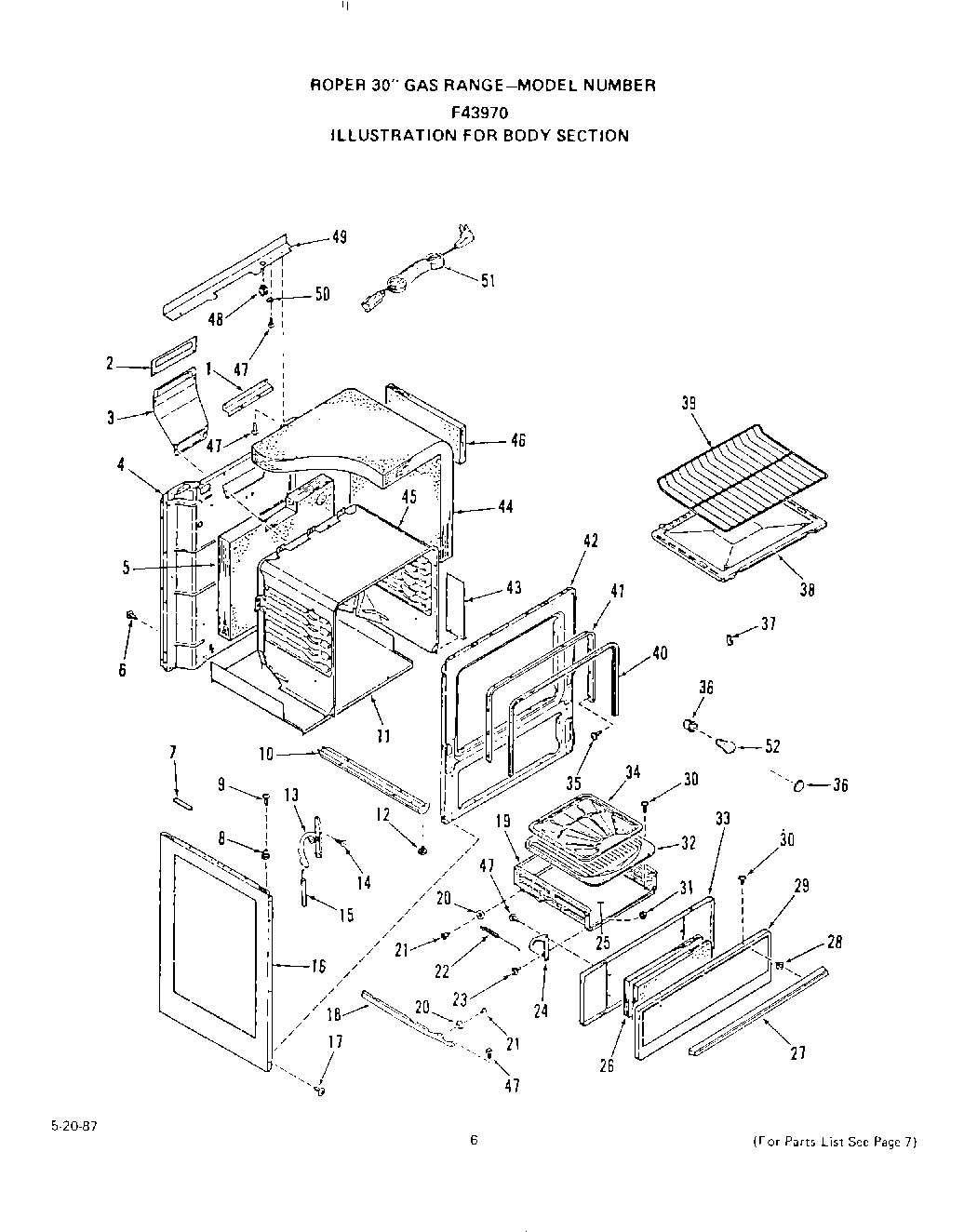

F4397^0 06 – BODY

Products

Position	Product
1	Flue Deflector Support
2	WPL 329314
3	Flue Deflector
4	Back-Main
5	Insulation-Oven Back
6	WP112432 Whirlpool Nut Assembly
7	Spacer-Main Top
8	Strike
9	Screw 6-32×7/8“
10	Base w/Levelers-Lt. or Rt.
11	Bottom-Main
12	Leg Leveler (4 Req)
13	Hinge-Main Top (Left)
13	Hinge-Main Top (Right)
14	Screw
15	Spring-Oven Door (Lt. or Rt.)
16	Body side (White)
16	Body Side (Almond)
16	Body Side (Wheat)
17	Screw 10ABx1/2“
18	Broiler Drawer Guide (Inc`s 20,21) (Left)
18	Broiler Drawer Guide (Inc`s 20,21) (Right)
19	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
20	Roller
21	Shoulder Rivet
22	WPL 327481
23	Bolt-Shoulder
24	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
24	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
25	WPL 331554
27	Handle
28	spacer-handle
29	Panel-Broiler Door (White)
29	Panel-Broiler Door (Almond)
29	Broiler Door Panel (Wheat)
30	Screw-10-32×1/2“
31	W10080180 Whirlpool Nut
32	Pan-Broiler (14451A M
33	Lining-Broiler Door (14451A Models)
34	WPL 331588
35	Screw 10ABx1/2“
36	Holder-Oven Lamp Bulb
37	Thermostat Bulb Clip (2 Required)
38	WPL 331539
39	WPL 326068
40	WPL 326047
41	main chassis (almond)
42	Front Frame
43	WPL 328984
44	Insulation-Oven Top & Sides (1 Piece)
45	Oven Body (14451A Models)
46	W10820036 Whirlpool Door Switch Kit
47	Screw 10-16×7/16“
48	Disconnect
49	Wire Cover-Backguard Bottom
50	C
51	Range Service Cord
52	Oven Lamp Bulb
