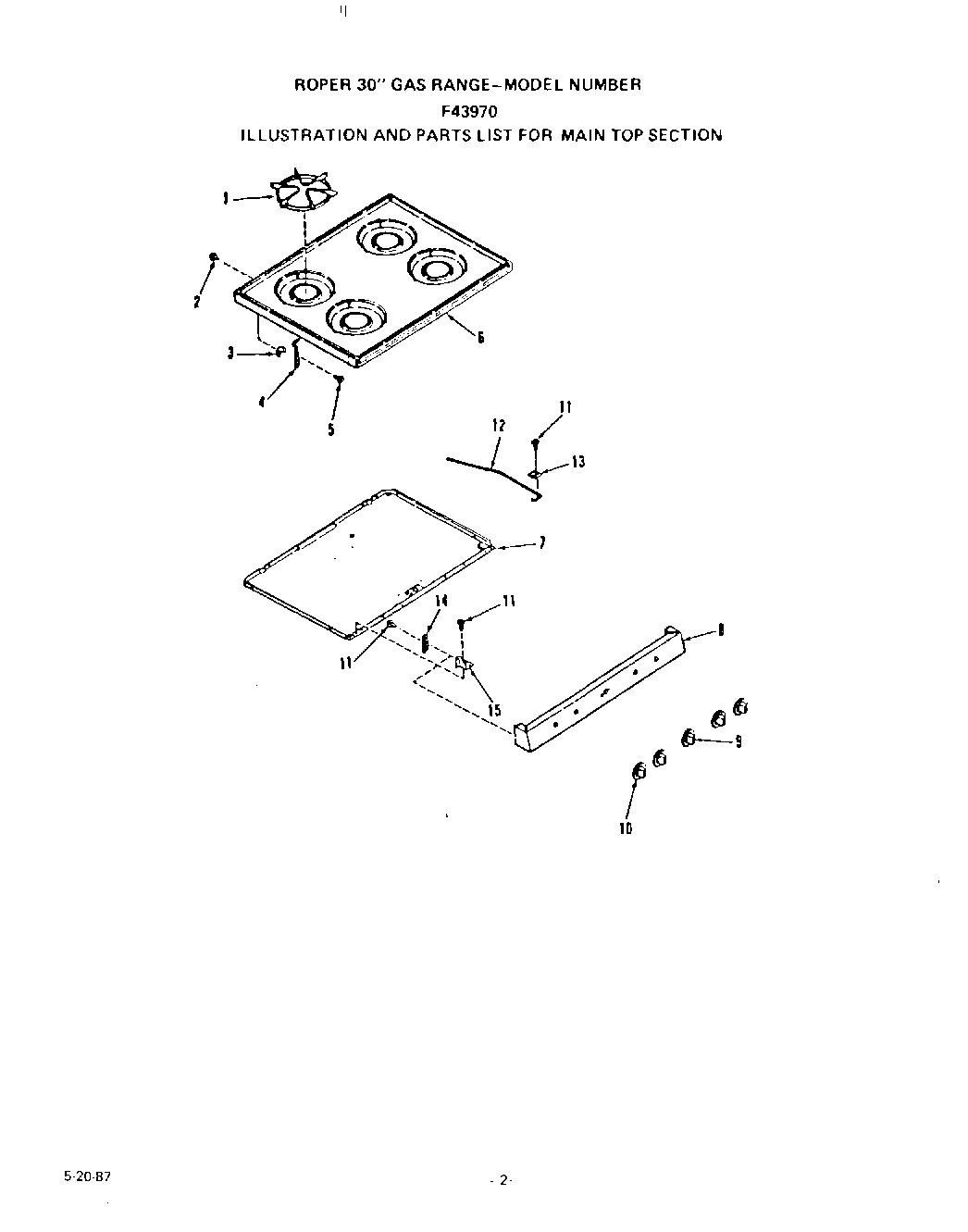

F4397W0 03 – MAIN TOP

Written by

Products

Position	Product
1	Top Grate (4 Req)
2	Screw-10-32×1/2“
3	Hinge Bracket
4	Right
4	Left
5	WPL 321162
6	Main top (White)
6	Main Top (Wheat)
6	Main Top (Almond)
7	Burner Box Bottom
8	Manifold Panel
9	Thermostat Knob
10	Gas Valve Knob
11	Screw 10-16×7/16“
12	Support Rod
13	Clamp
14	Cleat
15	Manifold Panel Bracket (Left)
15	Manifold Panel Bracket (Right)
