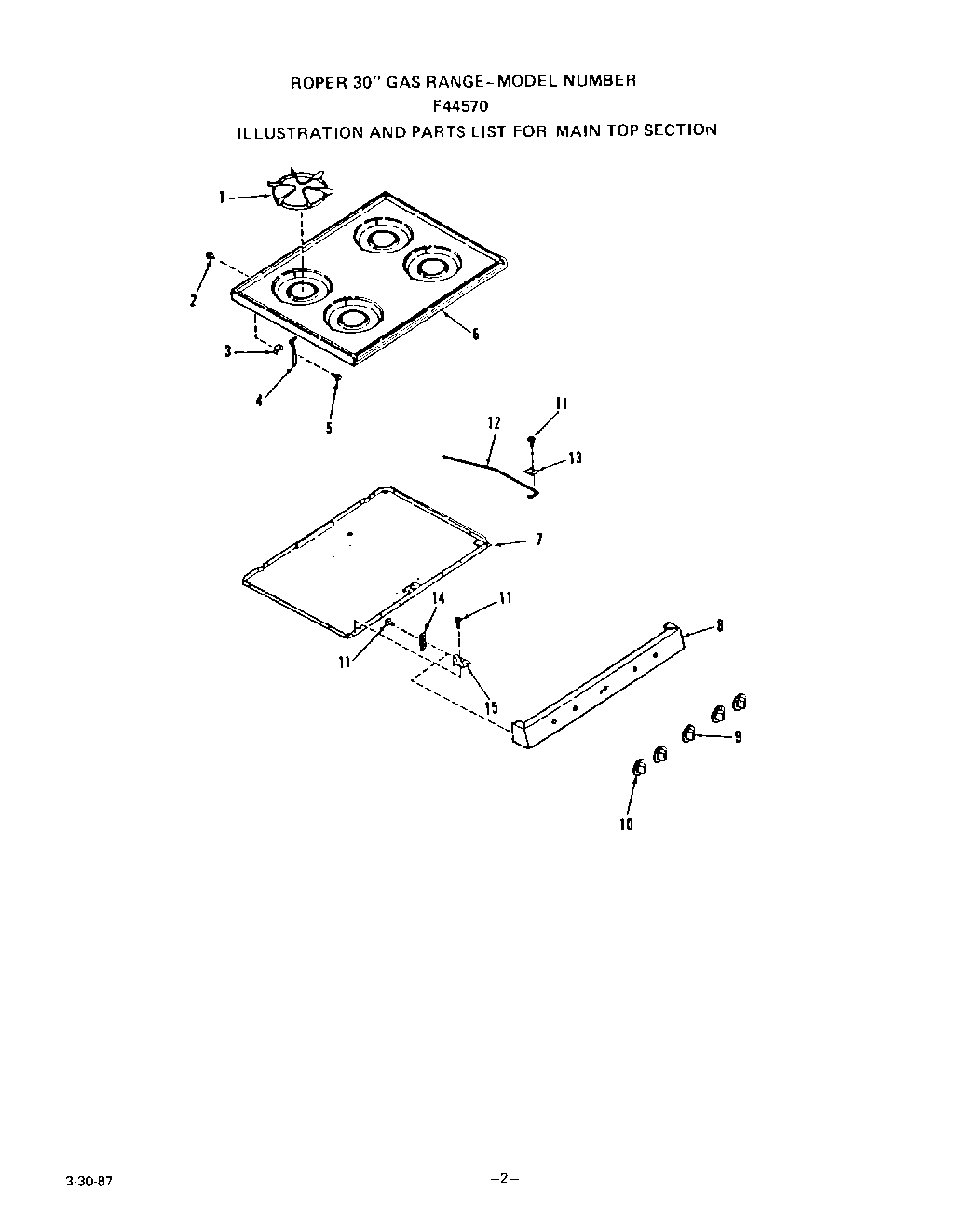

F4457^0 03 – MAIN TOP

F4457^0 03 – MAIN TOP

Written by

in

F4457^0 03 – MAIN TOP

Products

PositionProduct
1Top Grate (4 Req)
2Screw-10-32×1/2“
3bracket-main top hinge (lt. or rt.)
4Hinge
4Left
4Right
5WPL 321162
6Main Top (Almond)
6Main Top
6Main top (White)
7Burner Box Bottom
8Manifold Panel
9Thermostat Knob
10Gas Valve Knob
11Screw 10-16×7/16“
12Support Rod
13Clamp
14Cleat
15Manifold Panel Bracket (Left)
15Manifold Panel Bracket
15Manifold Panel Bracket (Right)
