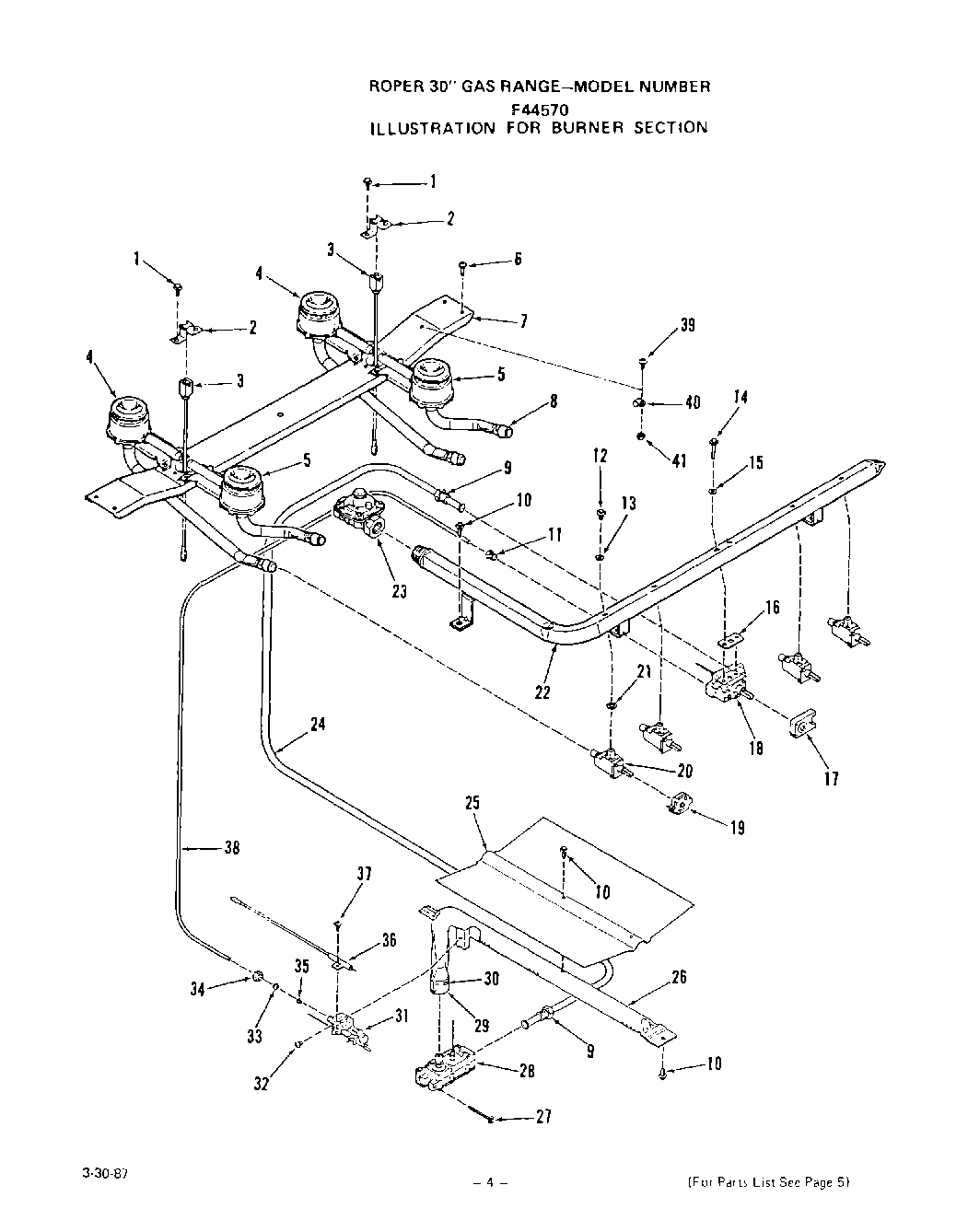

| 1 | Screw 8 - 32x3/8`` |
| 2 | panel, side l.h. (almond panel, side r.h.) |
| 3 | Left |
| 3 | Electrode (Left) |
| 3 | Electrode |
| 4 | Rear Burner-Lt. or Rt.. (Inc`s. Key 8) |
| 5 | Front Burner-Lt. or Rt. (Inc`s. Key 8) |
| 6 | Screw 6-20x3/8`` |
| 7 | Support-Top Burner |
| 8 | Air Shutter |
| 9 | G.M. Inverted Nut 3/8`` |
| 10 | Screw 10-16x7/16`` |
| 11 | Loxit Nut 3/16`` |
| 12 | Mounting Screw (Inc`s 86) |
| 13 | Silicone Rubber Gasket (For Key 26) |
| 14 | Mounting Screw (2 Req. for 114) |
| 15 | Gasket (For 83) |
| 16 | Silicone Rubber Gasket |
| 17 | WPL 318432 |
| 18 | Thermostat (Inc`s Key 16) |
| 19 | Panel, Side L.H. (White) |
| 20 | Gas Valve (4 Req) (Inc`s. 20) |
| 21 | Silicone Rubber Gasket |
| 22 | Manifold Pipe |
| 23 | Pressure Regulator |
| 24 | Tubing 3/8`` |
| 25 | Baffle - Oven Burner |
| 26 | Oven Burner (Inc`s. 19, 32 & 33) |
| 27 | Screw 10-32 x 2`` |
| 28 | Control Valve (Inc`s. 27 & 31) |
| 29 | Air Shutter |
| 30 | Adjustment Screw -Air Shutter |
| 31 | Pilot Only (Inc`s 90) |
| 32 | Screw 10-24x1/4`` |
| 33 | G.M. Compression Sleeve 3/16`` |
| 34 | G.M. Compression Nut 3/16`` |
| 35 | Orifice Cup Only (For 94) |
| 36 | Electrode-Oven Spark Igniter |
| 37 | Screw 6Ax3/8`` |
| 38 | Tubing 3/16`` -Oven Therm. To Oven Control Pilot |
| 39 | Screw 8-32 x 3/8`` |
| 40 | Clip |
| 41 | Keps Nut 8-32 |
