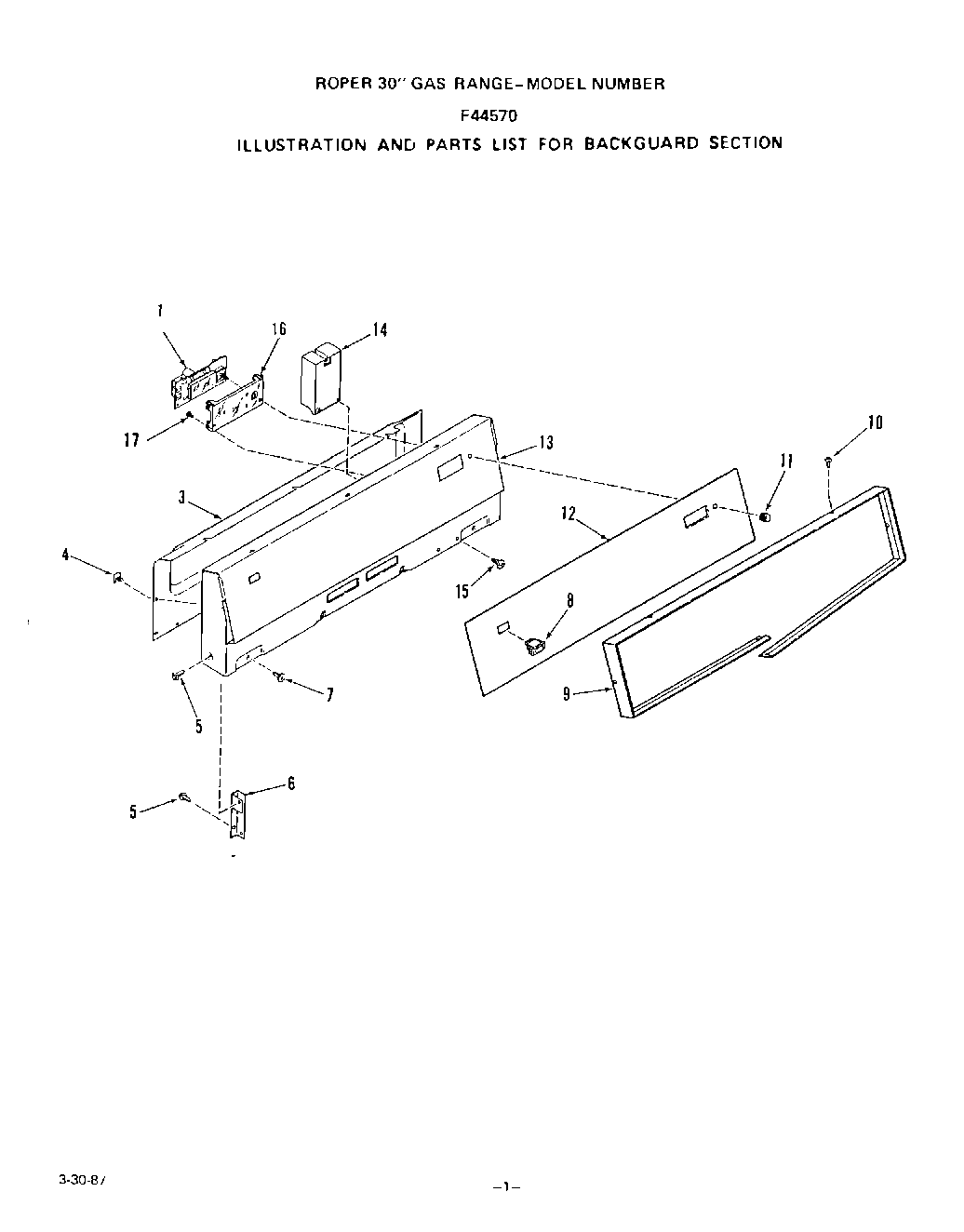

F4457W0 02 – BACKGUARD

F4457W0 02 – BACKGUARD

Written by

in

F4457W0 02 – BACKGUARD

Products

Position	Product
1	Clock
3	Wire Cover
4	Clip
5	Screw 10-16×7/16“
6	Right
6	Support
6	Support-Backguard (Left)
7	Rivet
8	Switch-Oven Light
9	Panel-Backguard
10	Screw 6-20×3/8“
11	Knob-Clock
12	Backguard Insert
13	Backguard Panel
14	Module – Spark Igniter
15	Screw 13-16 x 1/2“
16	Clock Lens
17	Screw 6-32×5/16“
