F4458^0 02 – BACKGUARD

F4458^0 02 – BACKGUARD

Written by

in

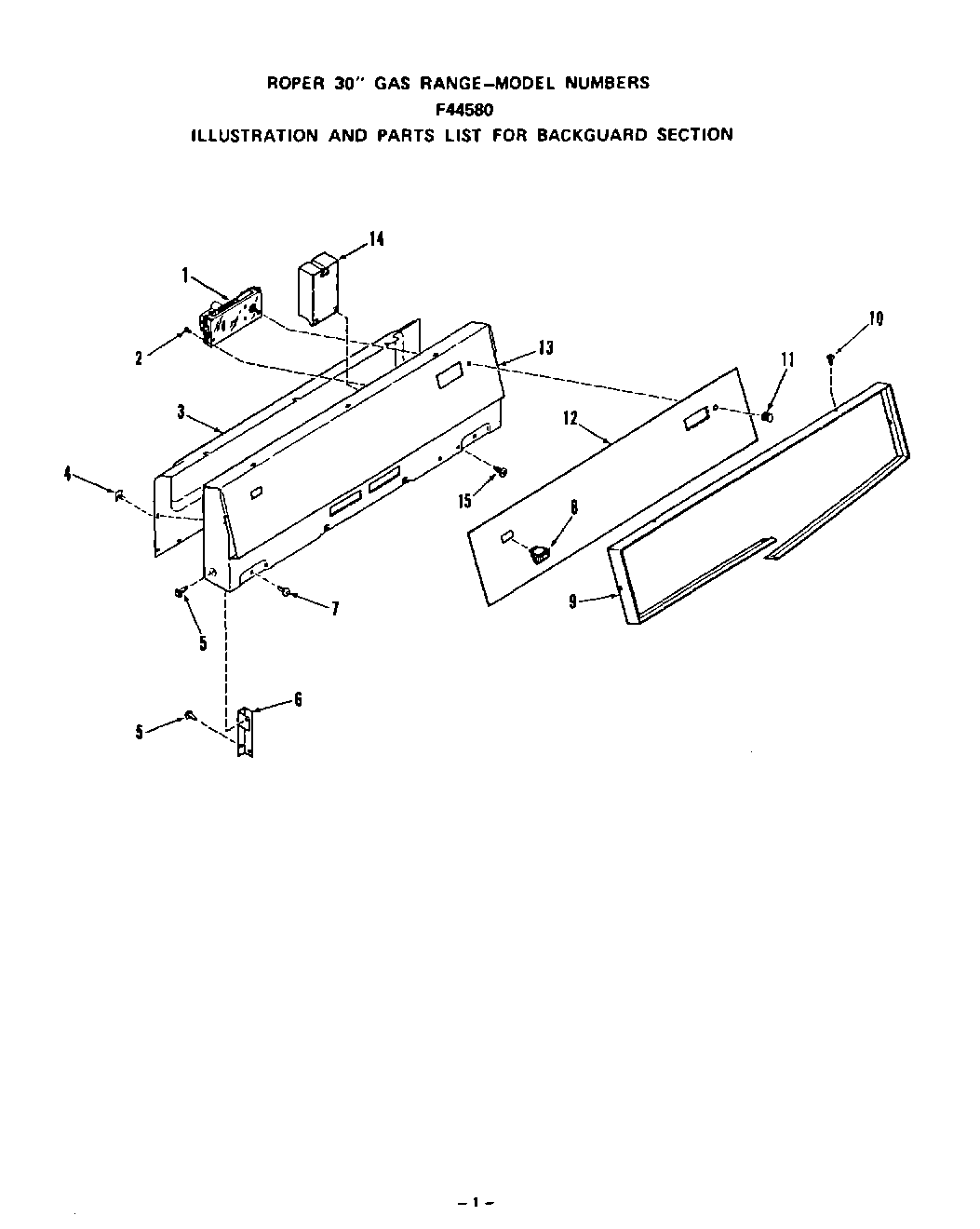

F4458^0 02 – BACKGUARD

Products

Position	Product
1	Clock w/Lens
1	Clock Lens
2	Screw 6-32×5/16“
3	Wire Cover
4	Clip
5	Screw 10-16×7/16“
6	Support-Backguard (Left)
6	Support-Backguard (Right)
7	Screw 10ABx1/2“
8	Switch-Oven Light
9	Bezel – Backguard
10	Screw
11	Clock Knob
12	Insert – Backguard
13	Panel-Backguard
14	Module – Spark Igniter
15	xInstallation Guide
15	Screw 13-16 x 1/2“
15	Use & Care Manual
15	Repair Parts List
