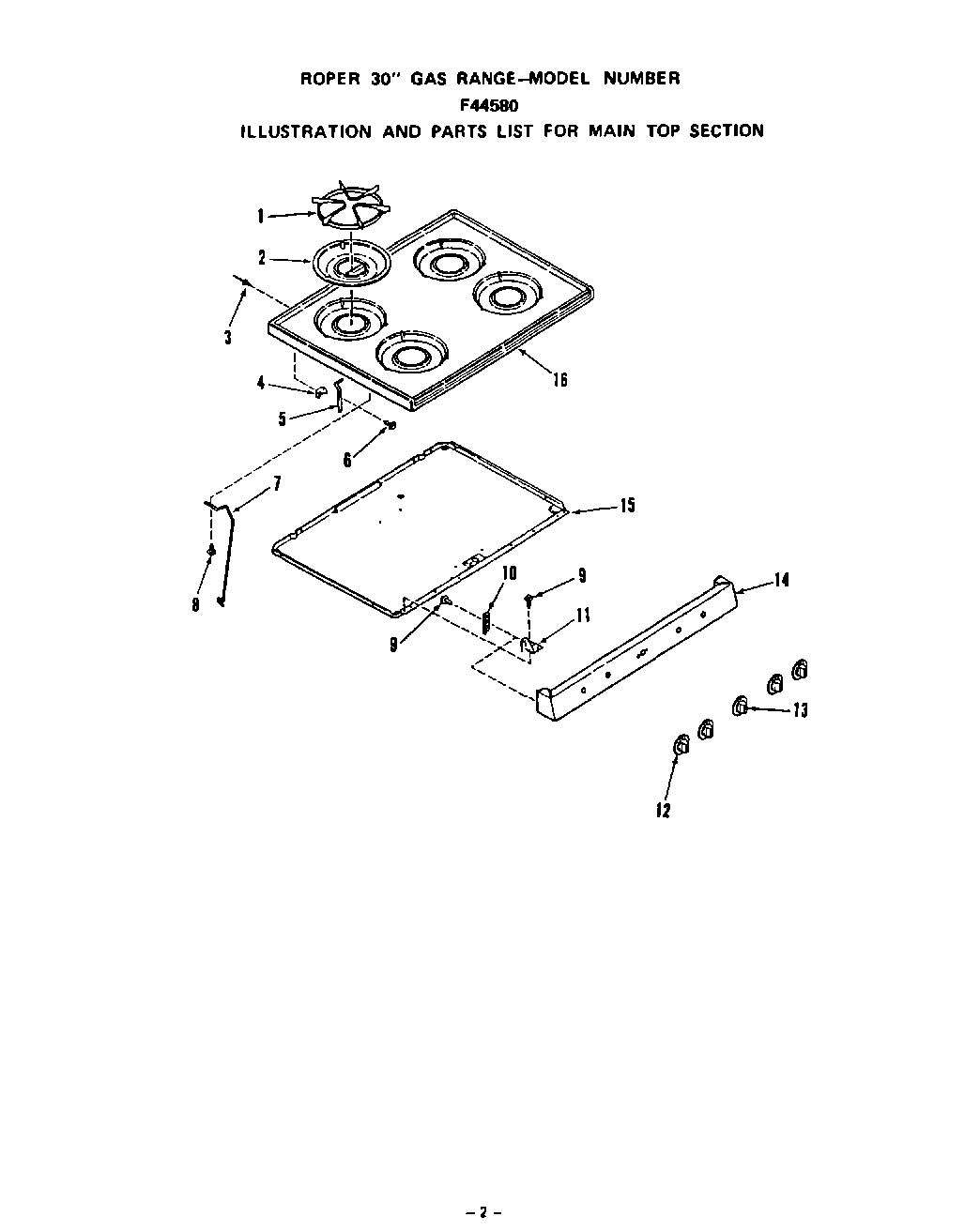

F4458^0 03 – MAIN TOP

Products

PositionProduct
1Top Grate (4 Req)
2Spill Bowl
3Rivet
4Hinge Bracket
5Right
5Left
6WPL 321162
7Support Rod-Main Top (2 Req)
8Screw
9Screw 10-16×7/16“
10Body Side Cleat
11Manifold Panel Bracket (Left)
11Manifold Panel Bracket (Right)
12Gas Valve Knob
13Thermostat Knob
14Manifold Panel
15Burner Box Bottom
16Main top (White)
16Main Top (Almond)
