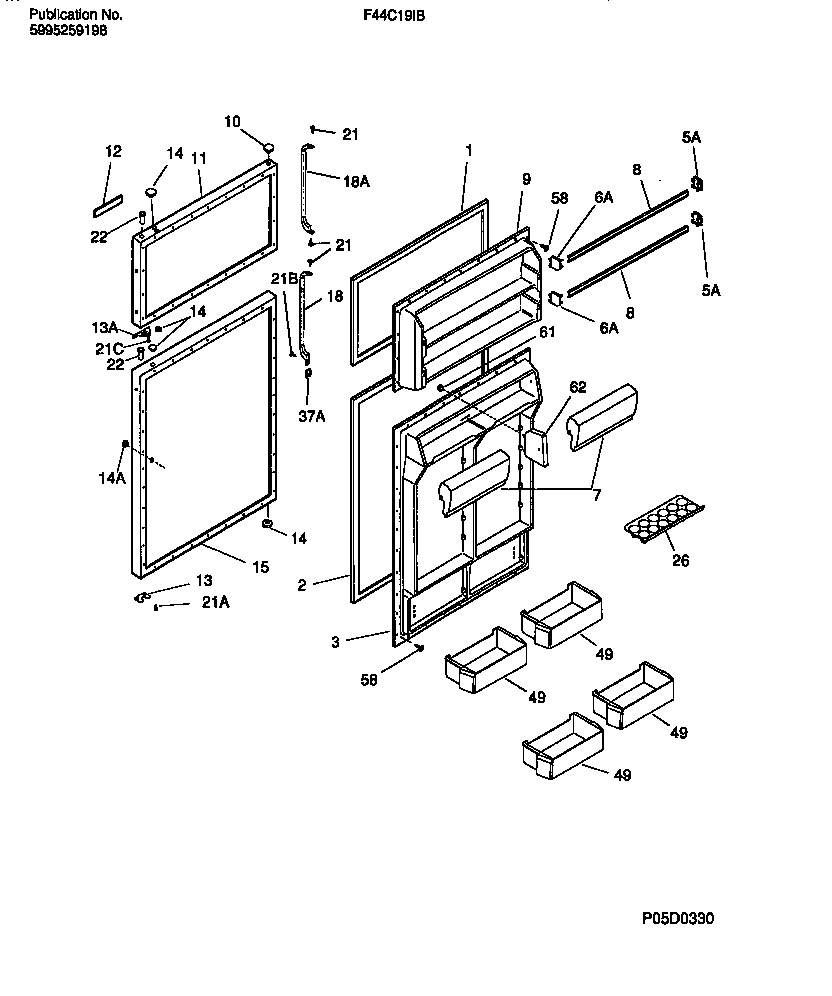

F44C19IBD0 02 – DOOR SECTION

F44C19IBD0 02 – DOOR SECTION

Written by

in

F44C19IBD0 02 – DOOR SECTION

Products

PositionProduct
*87960INSULATION
1WCI 215608902
2WCI 215732403
3WCI 5303276800
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303284478
8WCI 215474020
9WCI 5303276748
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917345
12LABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED)
13AWCI 218249002
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15AWCI 215894100
15WCI 5303917343
18WCI 215482143
18AWCI 215482132
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
21C218252201 Frigidaire Refrigerator Screw
21AWCI 5308011745
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37ATRIM-HANDLE, END CAP, ALMOND, REFR DOOR
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
