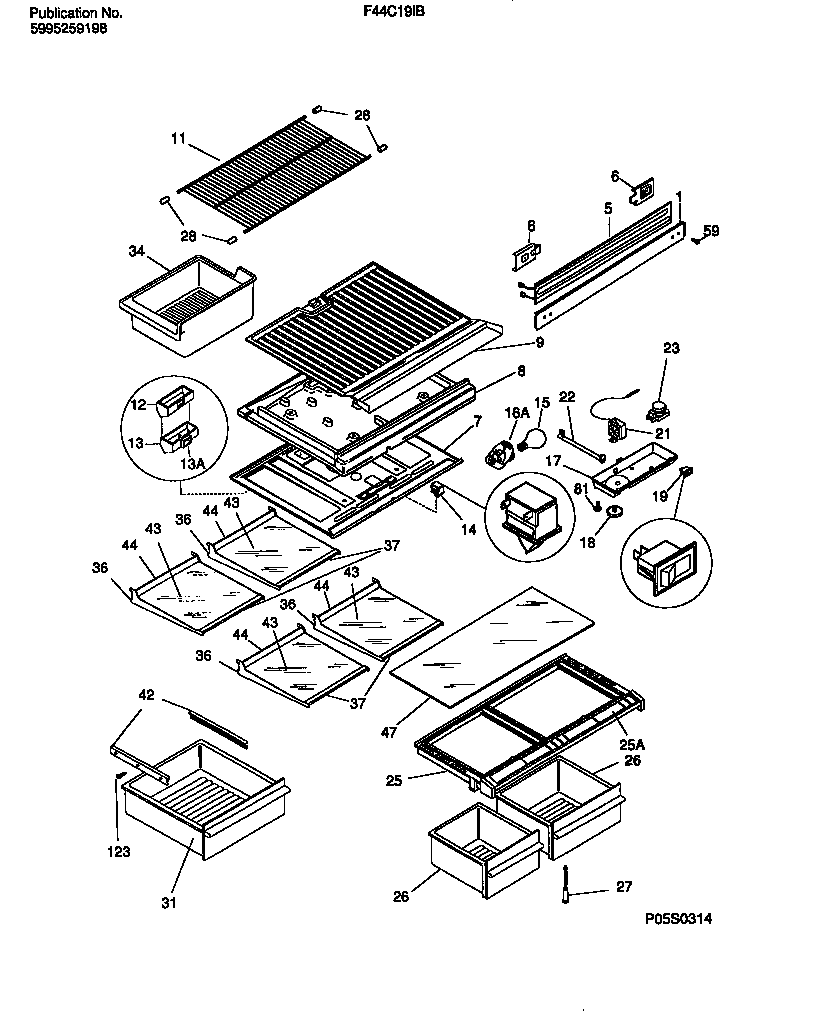

F44C19IBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

F44C19IBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

F44C19IBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7AWCI 5303001380
7TOP – REFRIGERATOR
8A3205266 Frigidaire Refrigerator Edge Protector
8BWCI 3018900
8DIVIDER-FOAM
9WCI 5303211427
11WCI 5303283031
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25AWCI 5303280075
25COVER – CRISPER
26AWCI 5303295931
26WCI 5303295929
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 5303295941
345303212918 Frigidaire Refrigerator Cont
36WCI 215919110
37TRIM-GLASS SHELF, 12.59“, FRONT
42HANGER-MEAT PAN, RH
42AHANGER-MEAT PAN, LH (NON-ILLUSTRATED)
43WCI 5303299899
44WCI 215919810
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
