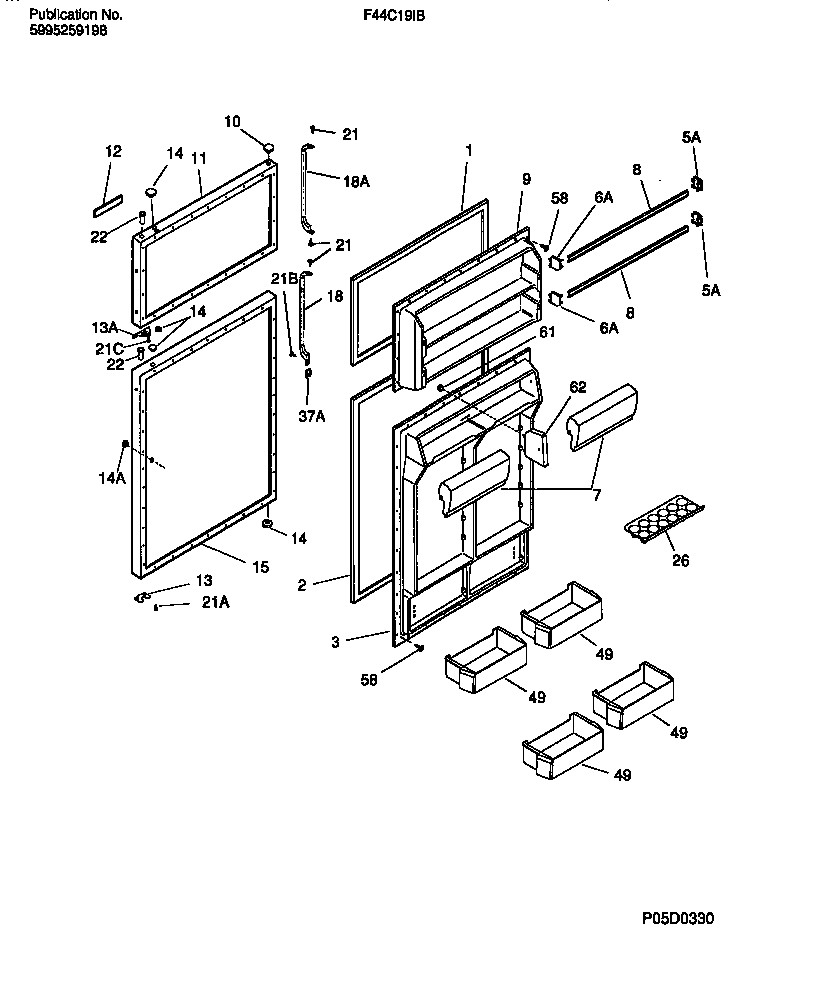

F44C19IBW0 02 – DOOR SECTION

F44C19IBW0 02 – DOOR SECTION

Written by

in

F44C19IBW0 02 – DOOR SECTION

Products

PositionProduct
*87960INSULATION
1WCI 215608912
2WCI 215732413
3WCI 5303276800
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303284478
8WCI 215474020
9WCI 5303276748
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917344
12LABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED)
13AWCI 218249001
13DOOR STOP, REFR SECTION
14A240494001 Frigidaire Refrigerator Plug Button
15AWCI 215894100
15WCI 5303917342
18WCI 215482137
18AWCI 215482135
21AWCI 5308011745
21C218252201 Frigidaire Refrigerator Screw
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
