F44C21IBW0 02 – DOOR SECTION

F44C21IBW0 02 – DOOR SECTION

Written by

in

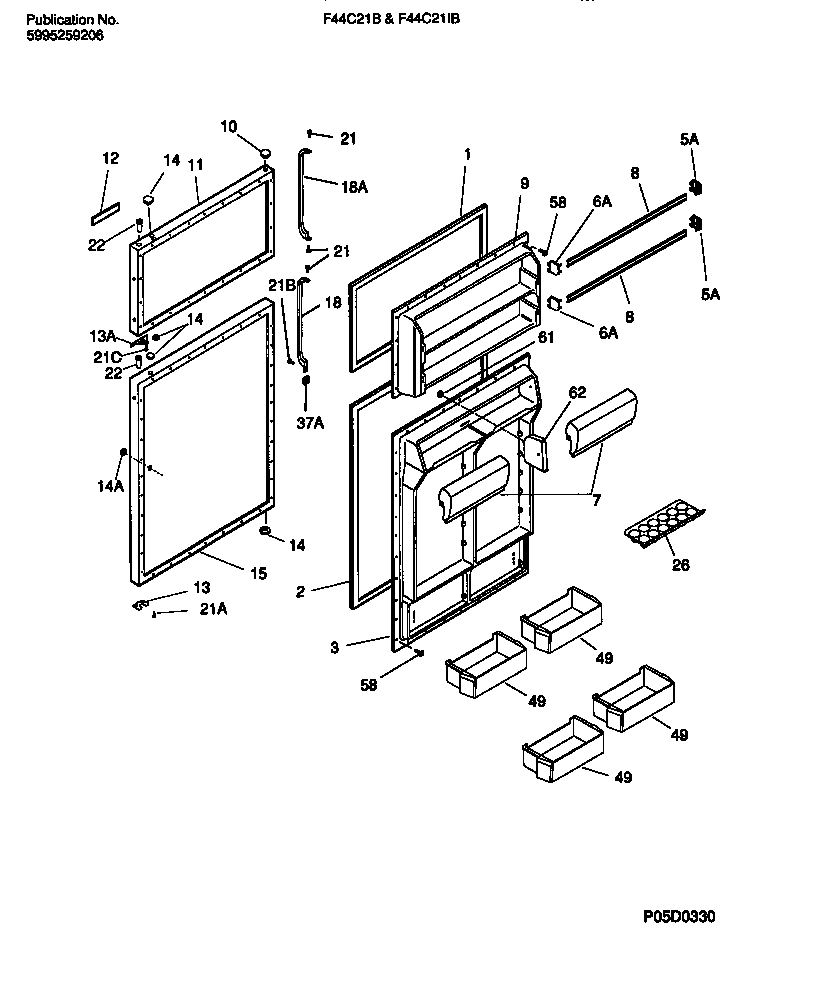

F44C21IBW0 02 – DOOR SECTION

Products

PositionProduct
*89400INSULATION
1WCI 215608913
2WCI 215732413
3WCI 5303275674
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303284478
8WCI 215474021
9WCI 5303206631
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917379
12LABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED)
13AWCI 218249001
13DOOR STOP, REFR SECTION
14A240494001 Frigidaire Refrigerator Plug Button
15AWCI 215894100
15WCI 5303917384
18HANDLE-DOOR,19.86“,WHITE
18AHANDLE, DOOR, 19.51“,WHITE
21B154518001 Frigidaire Refrigerator Screw
21C218252201 Frigidaire Refrigerator Screw
21AWCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
