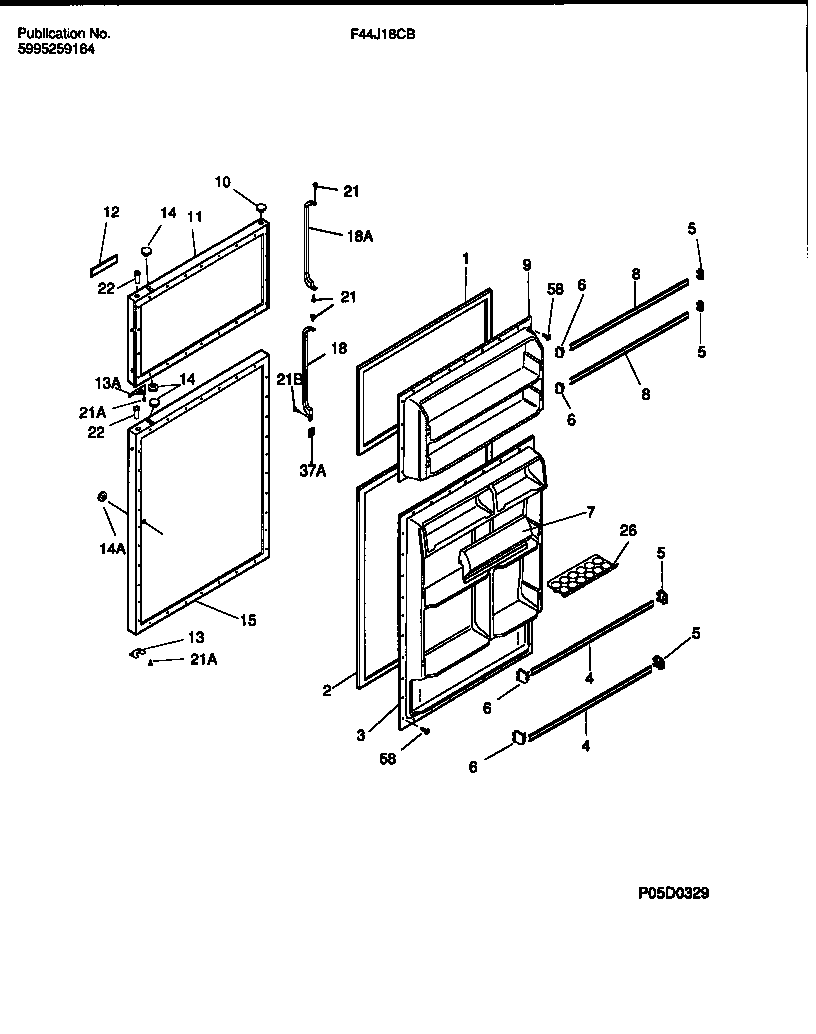

F44J18CBD0 02 – DOOR SECTION

F44J18CBD0 02 – DOOR SECTION

Written by

in

F44J18CBD0 02 – DOOR SECTION

Products

PositionProduct
*02880INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303207346
4215516220 Frigidaire Refrigerator Door Rack
55303325990 Frigidaire Refrigerator Door Bar End Cap
65303325991 Frigidaire Refrigerator Door Bar Endcap
7WCI 5303290921
9WCI 5303207343
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917314
12LABEL-NAMEPLATE, WHITE (NOT ILLUSTRATED)
13AWCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15WCI 5303917360
18WCI 215482121
18AWCI 215482110
21A218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37ATRIM-HANDLE, END CAP, ALMOND, REFR DOOR
585304455651 Frigidaire Refrigerator Screw
