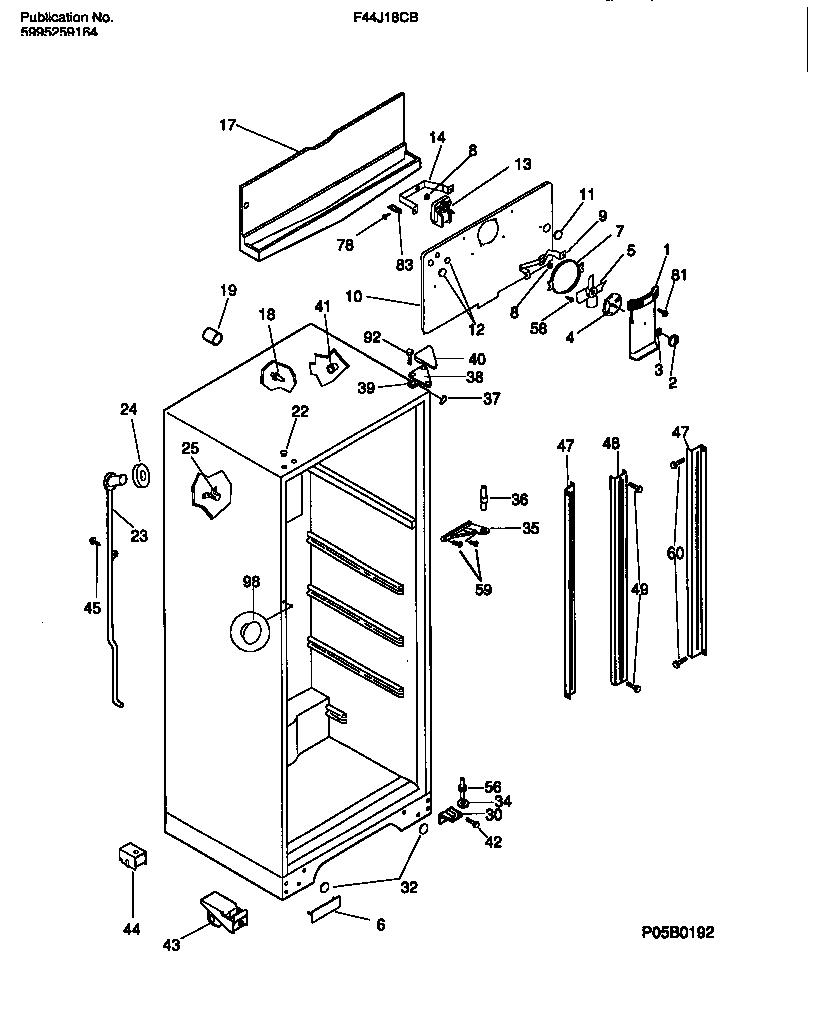

F44J18CBD0 03 – CABINET W/ FAN ASSEMBLY

F44J18CBD0 03 – CABINET W/ FAN ASSEMBLY

Written by

in

F44J18CBD0 03 – CABINET W/ FAN ASSEMBLY

Products

PositionProduct
*02883TOUCH, UP PAINT, ALMOND (NI)
*02881PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303301545
2WCI 5303296360
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 215846500
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079000
12AWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
30WCI 3206136
30ATAPPING PLATE, LOWER HINGE, (2) (NI)
32WCI 215217702
34WCI 5308000186
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5300188673
43CWCI 5308009790
43BBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43DWCI 5308011326
43AWCI 5308009760
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 3206202
48WCI 3916030
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
