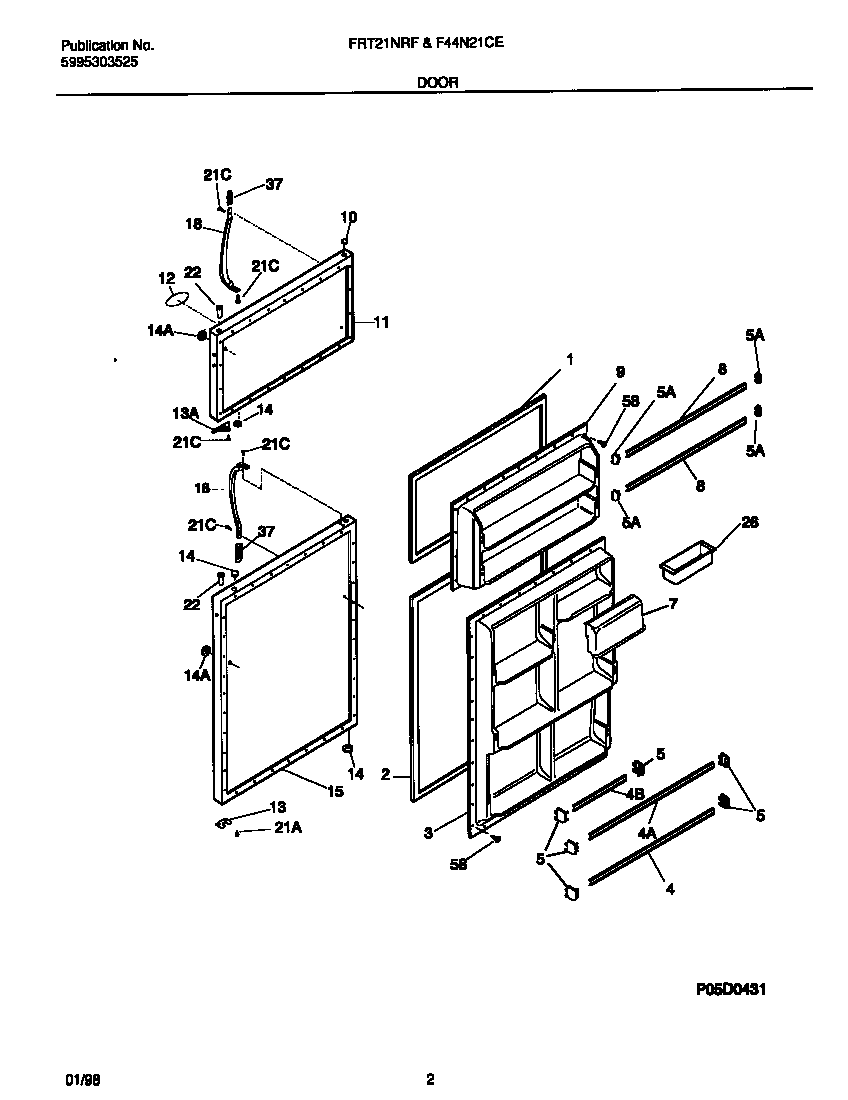

F44N21CED3 02 – DOORS

Products

PositionProduct
*25043INSULATION
*25042MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*25040WCI 218364002
1WCI 215608903
2WCI 218730610
3WCI 215393201
4215516220 Frigidaire Refrigerator Door Rack
5A218809801 Frigidaire Refrigerator Support-Door Rack
5B218809701 Frigidaire Refrigerator Door Rack Support
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303310094
9WCI 215530301
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, W/INSULATION
12WCI 215008617
13DOOR STOP, REFR SECTION
13WCI 218249002
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
26WCI 3204522
37BWCI 218676001
37WCI 215867059
37AWCI 215940700
58Screw,No.10 pan hd ,8-18 x .5
