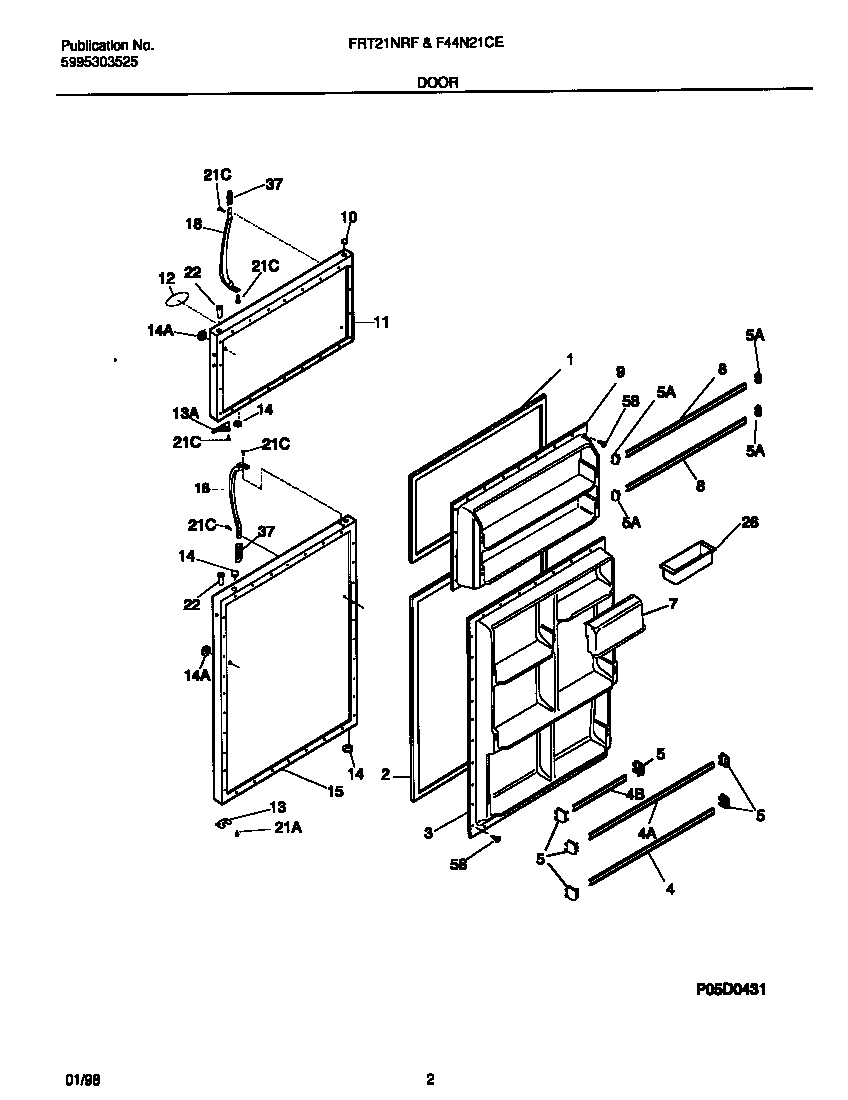

F44N21CEW3 02 – DOORS

F44N21CEW3 02 – DOORS

Written by

in

F44N21CEW3 02 – DOORS

Products

PositionProduct
*25041WCI 218364001
*25043INSULATION
*25042MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1WCI 215608913
2WCI 218730609
3WCI 215393201
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
5A218809801 Frigidaire Refrigerator Support-Door Rack
5B218809701 Frigidaire Refrigerator Door Rack Support
7WCI 5303310094
9WCI 215530301
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE, W/INSULATION
12WCI 215008616
13WCI 218249001
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
18218668001 Frigidaire Refrigerator P-1 Handle
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
26WCI 3204522
37WCI 215867058
37BWCI 218676001
37AWCI 215940700
58Screw,No.10 pan hd ,8-18 x .5
